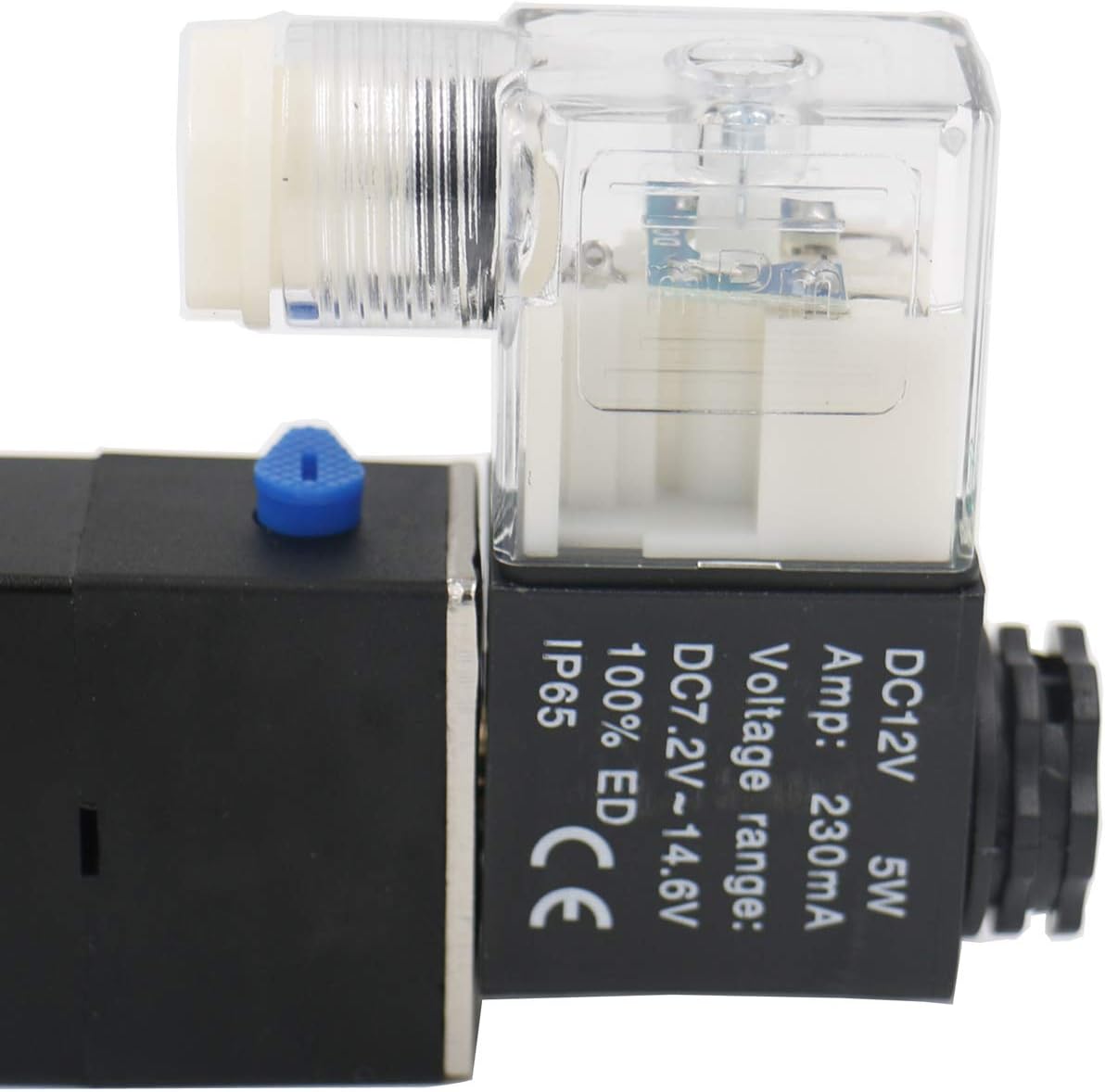

Baomain Pneumatic Solenoid Air Valve 4V230C-08 DC 12V 5 Way 3 Position PT1/4" Internally Piloted Acting Type Double Electrical Control Midst Closed
Product details
| Management number | 247464292 | Release Date | 2026/08/16 | List Price | US$8.72 | Model Number | 247464292 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Safety, applicability, lightweight form factor.For remote electric control fluid conduit in the valve opening and closing.Please note that the gas flow direction and the takeover tooth type is correct installation.With solenoid operated for control appropriate flow and direction, provide great performance.Great body for a long lifespan, perfect for electrically driven pneumatic power control.
- Model: 4V230C-08; Operation Type: Internally Piloted Acting Type
- Type: 3 Position 5 Way; Working Voltage/Power: DC12V; Operating Pressure: 0.15-0.8MPa
- Port Connection: Air Inlet =Air Outlet=PT 1/4, Exaust =PT 1/8; AirInlet Diameter: 11.5mm/ 0.45"
- Hex Connector Inner Dia(Approx): 9.5mm / 0.37"; Total Size(Approx): 190 x 65 x 22mm / 7.5" x 2.6" x 0.9" (L*W*H)
- Weight: 355g; Package Content: 1 x Solenoid Valve
| UPC | 711811406492 |
|---|---|
| ASIN | B01LWJ3AWG |
| Size | 7.5'' x 2.6'' x 0.9'' |
| Brand Name | Baomain |
| Unit Count | 1 Count |
| Valve Type | solenoid valve |
| Thread Size | 1/4 inch |
| Thread Type | Pipe Thread |
| Manufacturer | A |
| Model Number | 4V230C-08 |
| Material Type | Plastic |
| Connector Type | Threaded Hex |
| Exterior Finish | Plastic |
| Number of Items | 1 |
| Number of Packs | 1 |
| Number of Ports | 5 |
| Maximum Pressure | 77.2 psi |
| Number of Pieces | 1 |
| Specification Met | CE |
| Included Components | Solenoid Valve |
| Inlet Connection Size | 0.83 inches |
| Inlet Connection Type | 1/4 Pipe Tapered |
| Outlet Connection Size | 0.25 inches |
| Outlet Connection Type | NPT |
| Manufacturer Part Number | 4V230C-08-12VDC |
