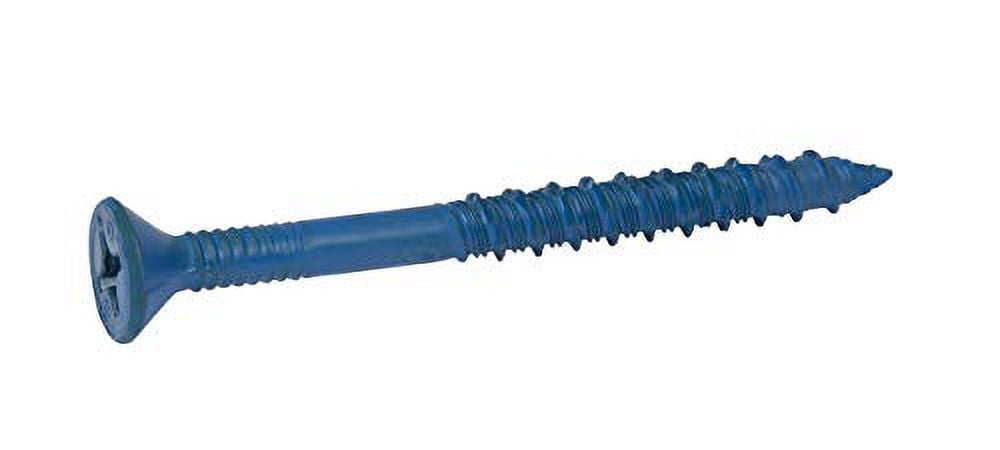

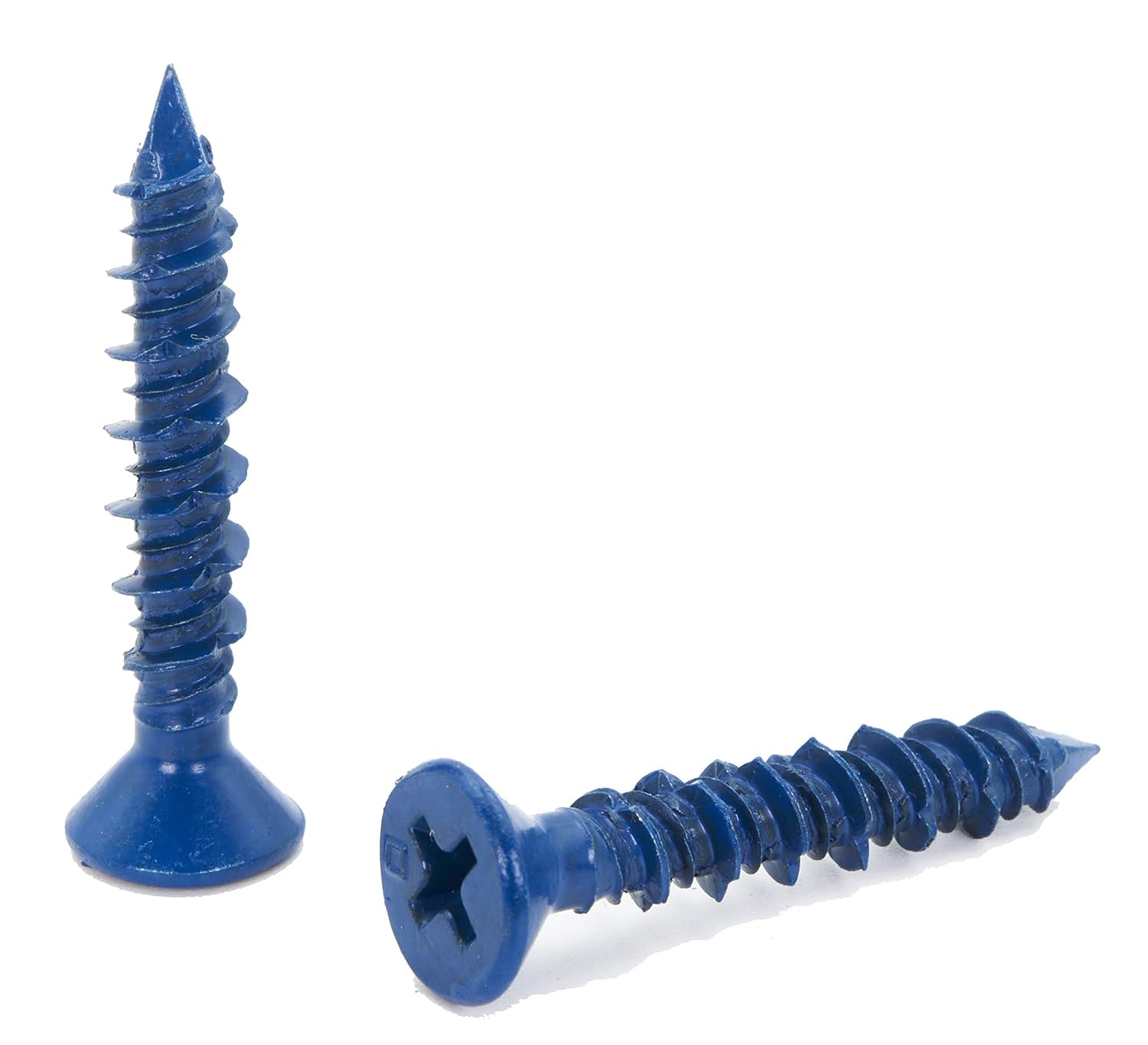

CONFAST 3/16" x 3-1/4" Blue Steel Flat Phillips Concrete Screw Anchor with Drill Bit (100 per Box)

The CONFAST 3/16" x 3-1/4" Blue Steel Flat Phillips Concrete Screw Anchor provides a reliable fastening solution for concrete, block, and brick applications in dry environments. Each box contains 100 durable carbon steel anchors, along with a drill bit for convenient installation. These blue self-tapping anchors feature a flat countersunk Phillips head that sits flush with the surface, requiring a #2 Phillips bit for driving. The diamond point design allows for easier installation by tapping threads directly into masonry. A 5/32" hole must be drilled using an ANSI concrete bit (included) into the base material, ensuring a minimum 1" embedment for secure fastening, and can accommodate fixture thicknesses between 1-3/4" and 2-1/4". The overall length of the anchor is 3-1/4". The length of the threads on the anchor is 1-3/4" in length. The hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. The 3/16" diameter anchor requires the hole in the fixture to be 1/4". Each anchor must be spaced a minimum distance of 3" from each other when measured center to center. It is very important not to install the anchor any closer than 2-1/4" from an unsupported edge of the concrete.

• Includes a concrete ANSI drill bit within each box for convenient installation.
• Constructed from durable Carbon Steel material.
• Features a blue finish.
• Designed for secure fastening into concrete, block, and brick base materials.
• Suitable for applications in dry environments.

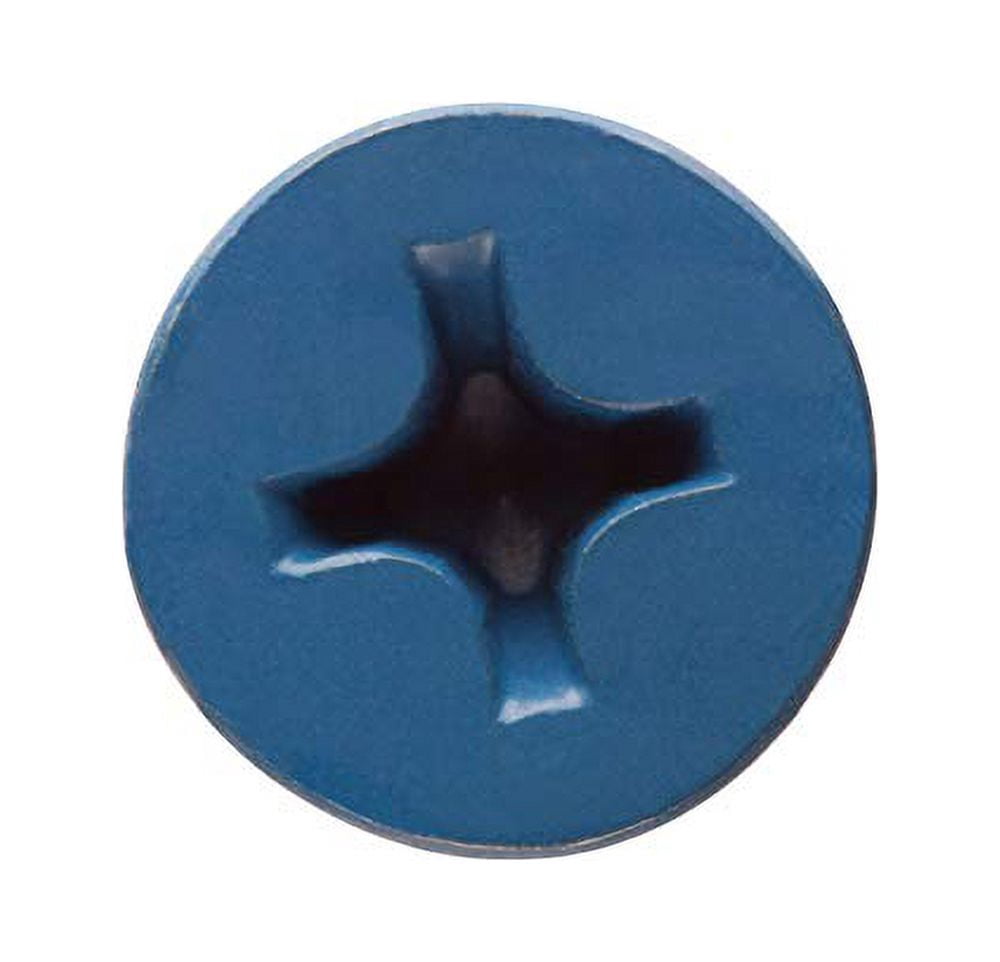

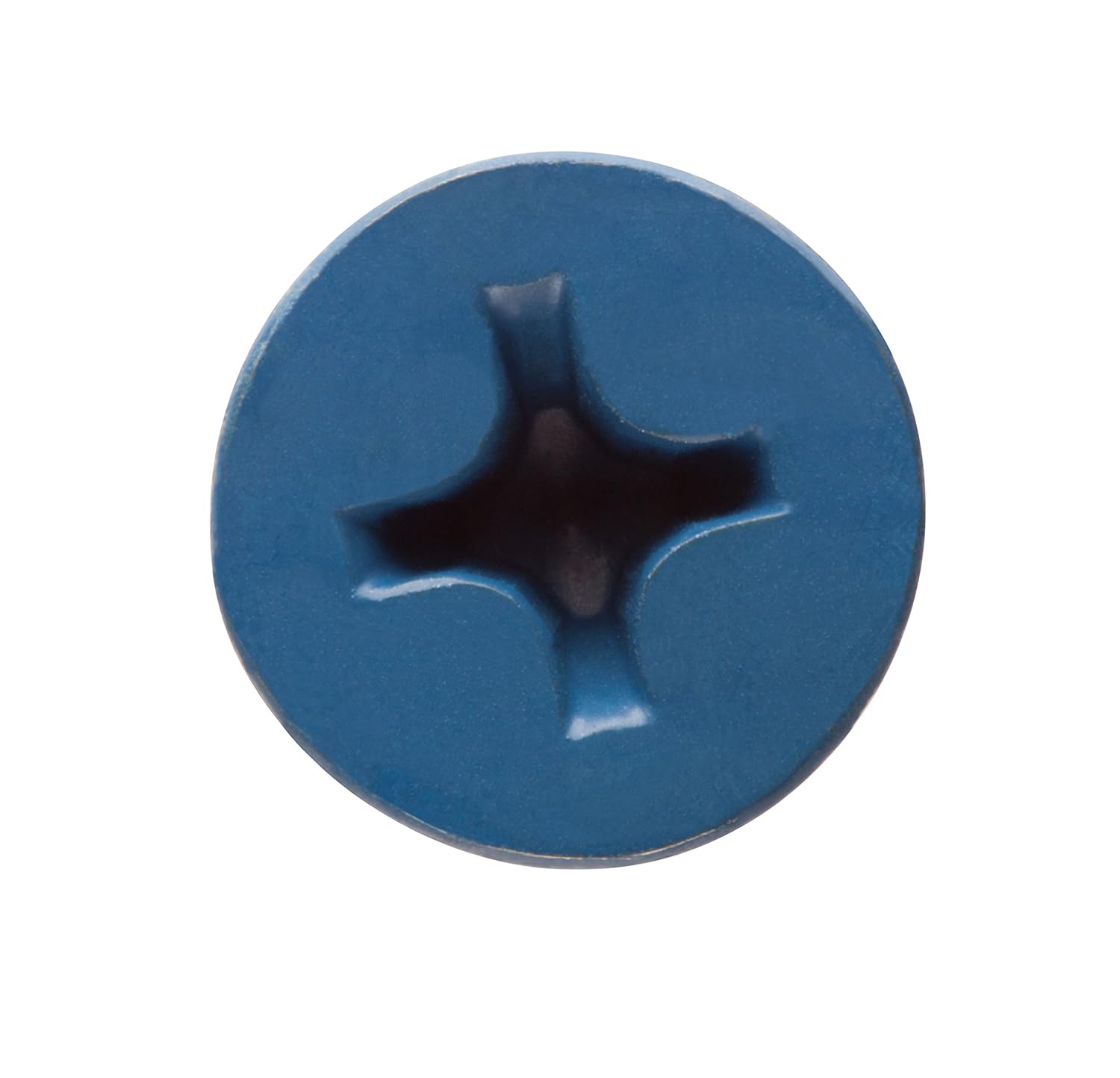

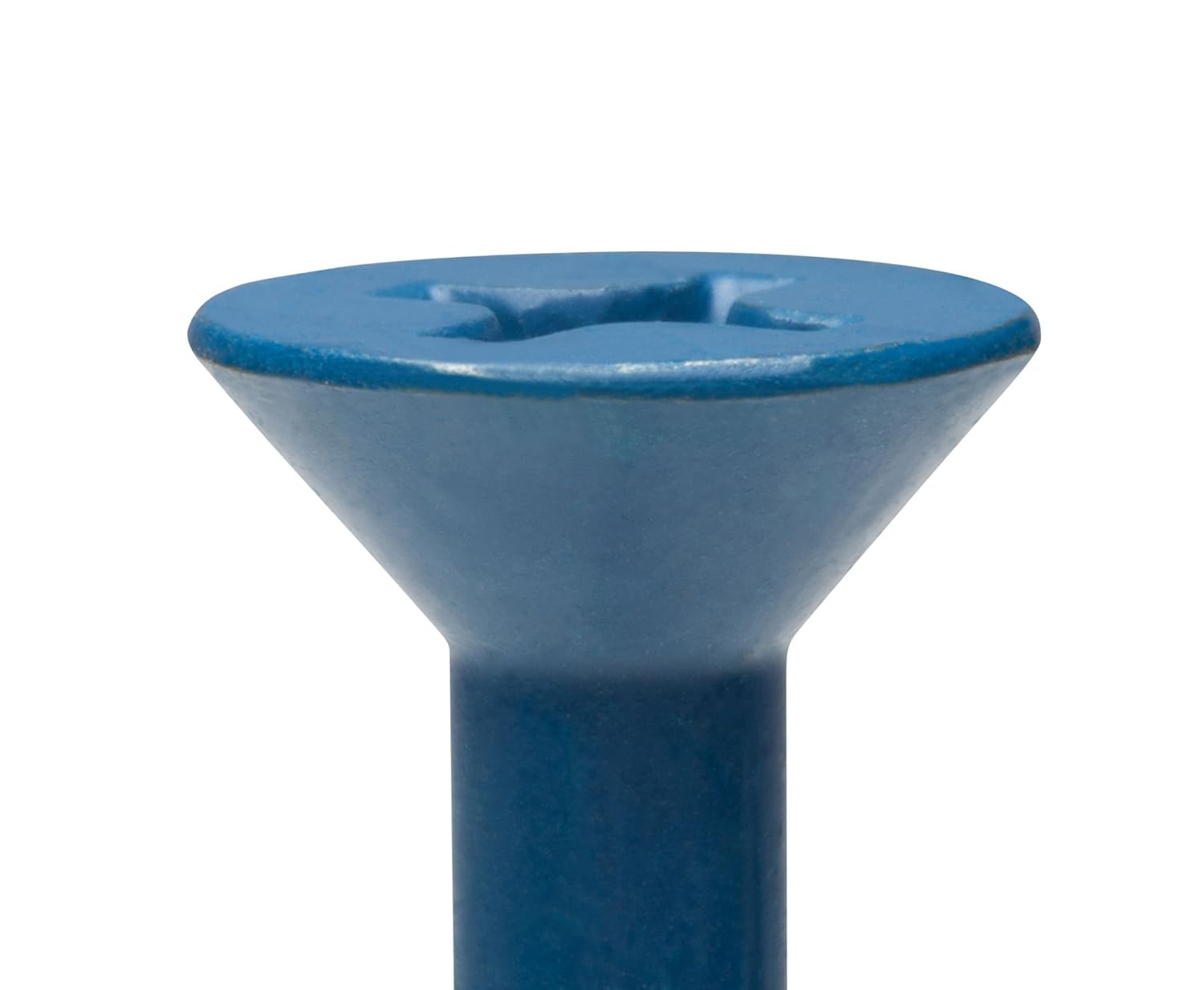

• Equipped with a Flat Countersunk Phillips head that sits flush with the surface upon installation.
• Requires a pre-drilled 5/32" hole, created with a carbide-tipped bit and hammer drill.
• Installs using a #2 Phillips driver bit.
• Measures 3/16" in anchor diameter.
• Has an overall anchor length of 3-1/4".
• Features a thread length of 1-3/4".
• Requires a minimum embedment of 1" into the concrete for optimal hold.
• Accommodates a maximum fixture thickness between 1-3/4" and 2-1/4".
• The fixture being fastened requires a 1/4" diameter hole.
• Maintain a minimum spacing of 3" center-to-center between installed anchors.
• Ensure an edge distance of at least 2-1/4" from any unsupported concrete edge.
• Self-tapping design directly creates threads in masonry, eliminating the need for additional anchors.
• Features a diamond point for easier and more efficient driving.
• Offers an easy installation process.
• Each pack contains 100 individual anchors.
• The assembled product weighs 1 lb.
• Identified by manufacturer part number CSF316314.
• Utilizes a Screw-In installation method.
