| Management number | 216553208 | Release Date | 2026/04/19 | List Price | US$34.00 | Model Number | 216553208 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

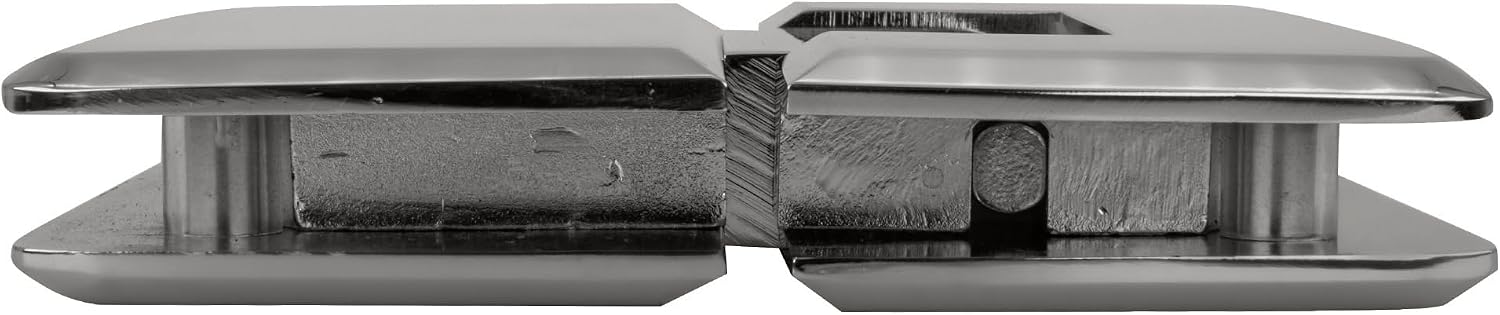

The CRL Pinnacle Hinge is similar to our popular Geneva Series Hinge, but with one design change: Pinnacle has radius corners and beveled edges for a sleek appearance. Pinnacle Hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass and are self-centering when within 15 degrees of the closed position. Pinnacle Hinges are constructed of solid brass, and have stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure. The Pinnacle Hinge also contains the same Reversible 5-degree Pivot Pin featured in our Geneva, Cathedral, Roman, Ultimate, and Elite Series Hinges. A Custom Pivot Pin is also available for "off-angle" installations. STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degrees. The opposite side of the Pin is marked 85 degrees. Standard Pinnacle Hinges come with the 90-degree side activated. Pre-set models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
| Brand Name | CRL |
|---|---|
| Unit Count | 1.0 Count |
| Item Weight | 2.5 Pounds |
| Finish Types | Polished |
| Manufacturer | C.R. Laurence |
| Model Number | P1N180CH |
| Material Type | Brass |
| Mounting Type | Glass To Glass |
| Included Components | 1 |
| Item Dimensions L x W | 5"L x 3"W |
| Maximum Weight Capacity | 120 Pounds |
