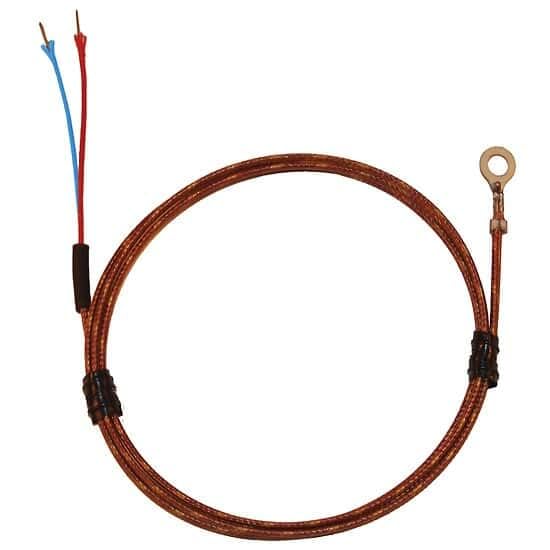

Digi-Sense Type K Economic Bolt On Thermocouple Probe #8 Screw 24 (in) Fiberglass Ext. Grounded Junction

Note: the temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C). SpecificationsType: Stripped Leads Junction: Grounded Probe Type: K Sheathmaterial: 24 AWG, Fiberglass Insulated Temperature Accuracy: ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C) ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C) ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater Description: Type K Econ Bolt On Thermocouple Probe Probe Probe #8 Scr 24 (in) Fiberglass Ext. Grn Jct Universal Guarantee: 6 month Min Temperature F: -250 Max Temperature C: 482 Min Temperature C: -150 Max Temperature F: 900

• Economical Bolt-On probes designed to be an easy and cost effective way to mount on a surface
• Available in #6 (M3.5) or #8 (M4) screw sizes and different lead lenghts
• Response Time: 2-4 seconds or greater
• Each probe comes with a color coded ANSI mini connector or stripped leads: type J-black, type K-yellow, type T-blue, and type E-purple.
• Custom designs or changes to this product are available upon request
