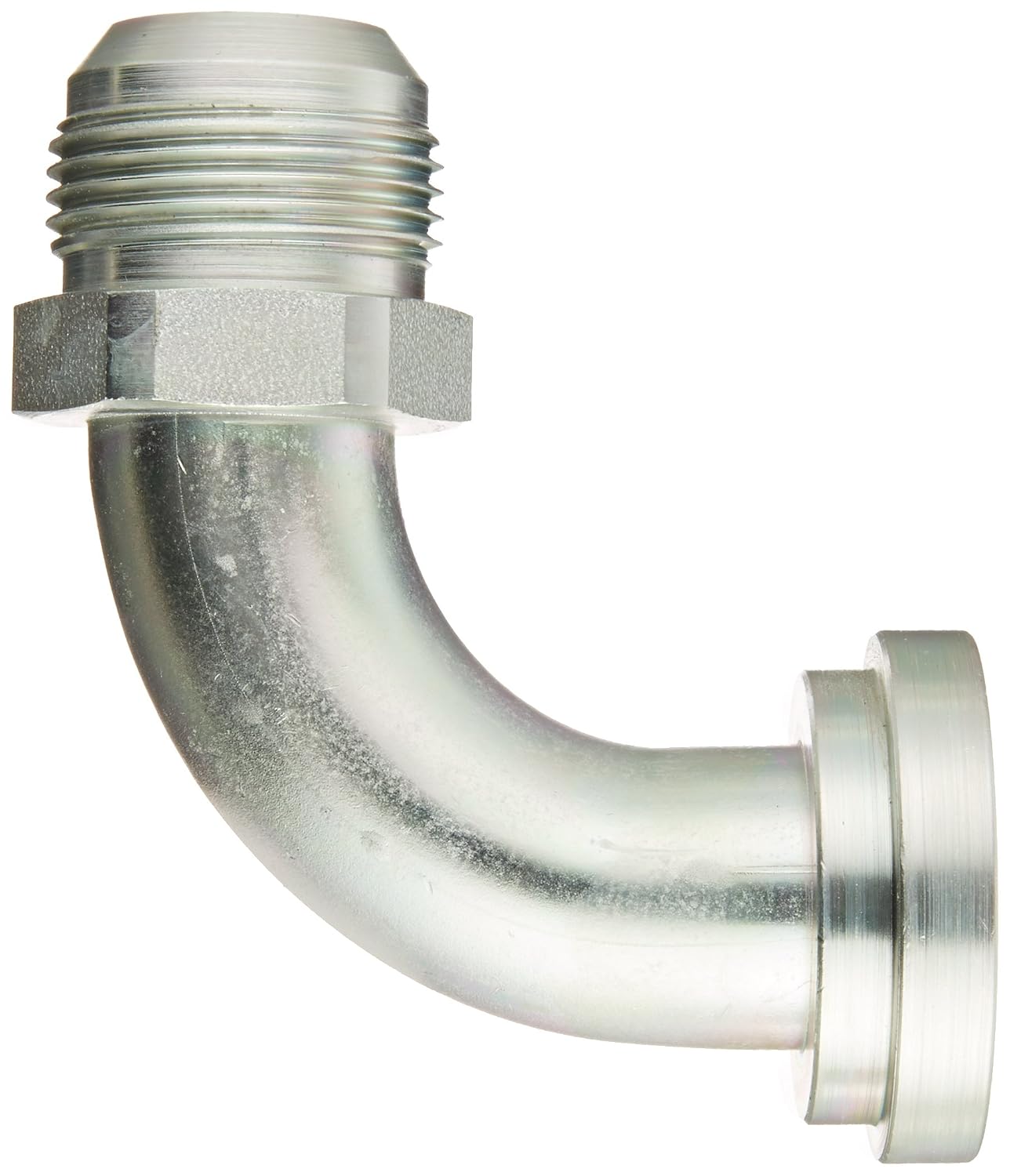

Eaton Aeroquip 500024-16S 90 Degree Split Flange Tube Elbow, JIC 37 Degree & Split Flange (Code 61) End Types, Carbon Steel, 1 JIC(m) x 1 Split Flange(code 61) End Size, 1" Tube OD

Tube fittings are components used for connecting, branching, terminating, and changing the direction of tubing in pneumatic and hydraulic systems. They are made of brass, stainless steel, polybutylene terephthalate (PBT), and other materials that resist corrosion and wear. Tube fittings have various types of connections, including threaded, welded, barbed, and push-to-connect (also called one-touch). Push-to-connect connections do not require tools or sealants. Tube fittings are used in various applications, including machine tools, airplane and truck controls, and automated production lines, among others.Eaton manufactures electrical, hydraulic, and mechanical power equipment. The company, founded in 1911, is headquartered in Dublin, Ireland.

• 90-degree elbow to connect a code 61 flange port to a Joint Industry Council (JIC) female thread at a 90-degree angle
• Male JIC threads on one end and a split flange (code 61) on the other end for connecting two different end types
• Carbon steel for tensile strength and hardness
• Standard duty for light to medium pressure applications
• Society of Automotive Engineers standard SAE J514 compliant for JIC pressures
