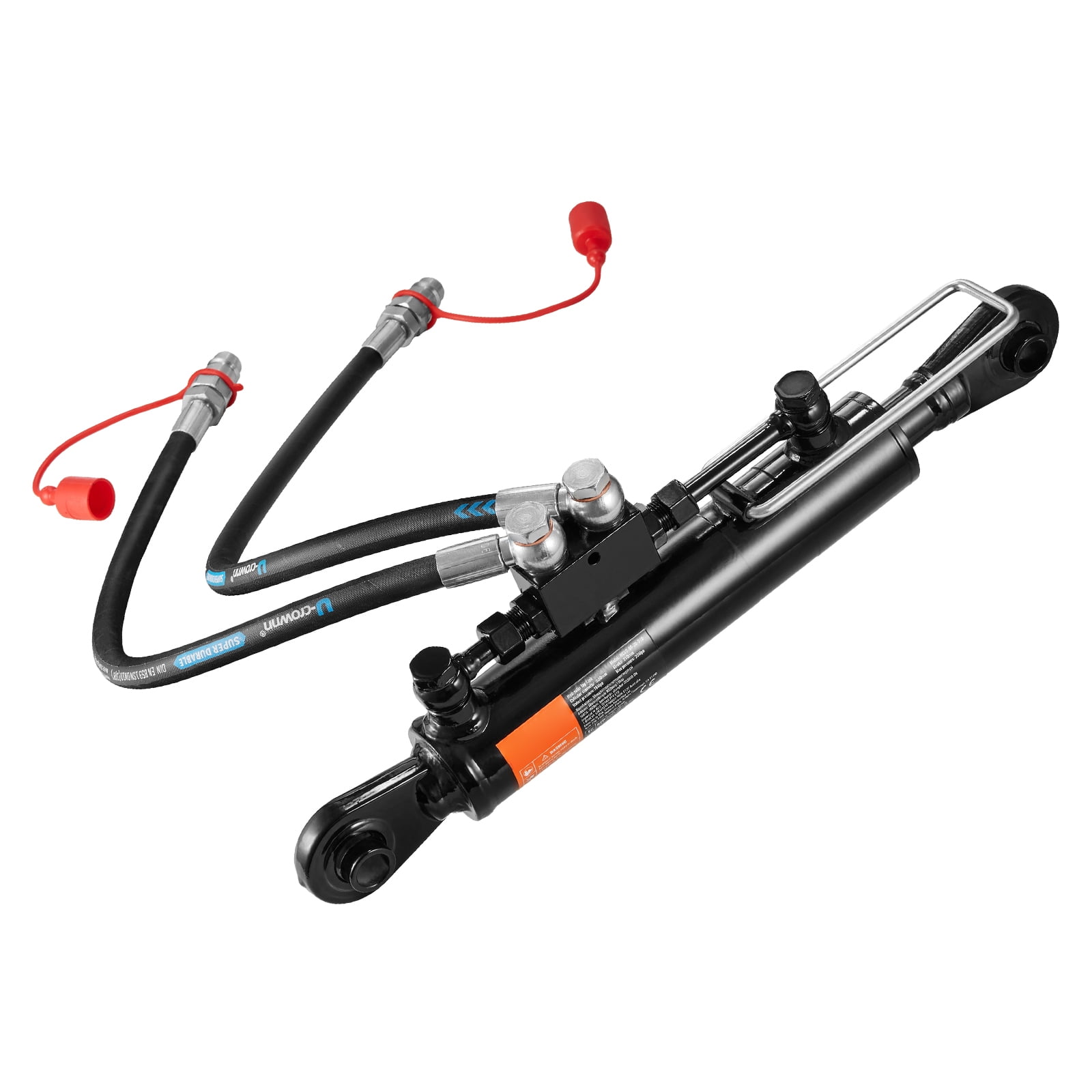

KFFKFF Hydraulic Adjustable Link Cat.1-1 (8.25 inches, 18.125~26.375 inches), Including Hydraulic Cylinder, 2 Hoses, & G3/8'' Valve

<div> <h3><strong>Product Description</strong></h3> <div>KFFKFF Hydraulic Cylinder- Reliable Performance, Accurate Extension Control!</div> <div> <div>The hydraulic cylinder is designed for easy installation on Cat. 1-1 tractors, providing reliable and precise extension control. Equipped with high-quality bidirectional check valves, it ensures excellent sealing and enhanced hydraulic power. With a maximum work pressure range of 20/18 MPa (2900/2610 psi), it delivers a pushing force of 3.5t and a pulling force of 2.3t. Built with heavy-duty construction, this hydraulic cylinder is durable and reliable for various applications.</div> </div> </div> <div> <div> <div>Enhanced Force Generation</div> <div> <div>The KFFKFF double-acting hydraulic cylinder is capable of generating 3.5 tons of pushing force and 2.3 tons of pulling force within the maximum working pressure range of 20/18 MPa. This impressive force is achieved without the need for mechanical gears or levers, making it a highly efficient and reliable tool.</div> </div> </div> <div> <div>Advanced Leak-proof Design</div> <div> <div>Featuring a leak-proof structure, the hydraulic top link Cat.1-1 utilizes bidirectional check valves with locking blocks. This innovative design effectively enhances sealing and precision control, preventing hydraulic oil backflow. Even after the pump stops working, the hydraulic cylinder piston rod remains stable under force, ensuring optimal performance in various applications.</div> </div> </div> <div> <div>Robust and Long-lasting</div> <div> <div>Crafted entirely from 45# steel, the KFFKFF top link is built to withstand heavy-duty use. Its durable construction makes it resistant to deformation, while the added paint coating on the surface provides excellent corrosion and rust resistance. This ensures that the hydraulic top link maintains its strength and reliability even in challenging environments such as muddy terrain, rainy days, and high outdoor temperatures.</div> </div> </div> <div> <div>Versatile Installation Options</div> <div> <div>The hydraulic top link's piston rod is specially designed with a rotating feature, allowing for flexible installation on different tools. Whether you need to connect it to a tractor or other equipment, the KFFKFF hydraulic top link offers easy and convenient installation. Please ensure that the hydraulic hose fittings are tightly secured to prevent any oil leakage during operation.</div> </div> </div> </div> <div> <h3><strong>Specifications</strong></h3> <div>Item Model Number: WCVC-50-30-210</div> <div>Minimum Retracted Length: 18-1/8 inch (460 mm)</div> <div>Stroke: 8-1/4 inch/210 mm</div> <div>Cylinder Diameter (I.D.): 2.0 inch / Φ50 mm</div> <div>Outer Diameter: 2-3/8 inch (Φ60 mm)</div> <div>Piston Rod Diameter: 1.2 inch / Φ30 mm</div> <div>Connection Hole Diameter: 0.8 inch / Φ19.4 mm</div> <div>Connection Hole Width: 1.7 inch / 44 mm</div> <div>Thrust Force: 3.5 Tons</div> <div>Pull Force: 2.3 Tons</div> <div>Check Valve Inlet/Outlet Port: G3/8"</div> <div>Rotatable Piston Rod: Ball Joint Linkage Structure</div> <div>Maximum/Rated Working Pressure: 20/18 MPa (2900/2610 psi)</div> <div>Compatible Equipment: ClassⅠTractors</div> <div>Hydraulic Hose: (I.D.&amp;L.): 0.4×30.1 inch / ∅10×765 mm</div> <div>Fitting Type: G1/2</div> <div>Color and Surface Treatment: Black Paint</div> <div>Main Material: 45#</div> <div>Service Life: 1-year Warranty</div> <div>Net Weight: 18.1 lbs / 8.2 kg</div> <div>Product Dimensions: 20.5×4.7×2.4 inch / 520×120×60 mm</div> </div> <div> <h3><strong>Package Content</strong></h3> <div>2×30.1 inch/765 mm 180 Bar Hydraulic Hoses</div> <div>2×Installation Articulated 3/8 Screws</div> <div>4×Copper Washers</div> <div>1×Instruction Manual</div> </div>

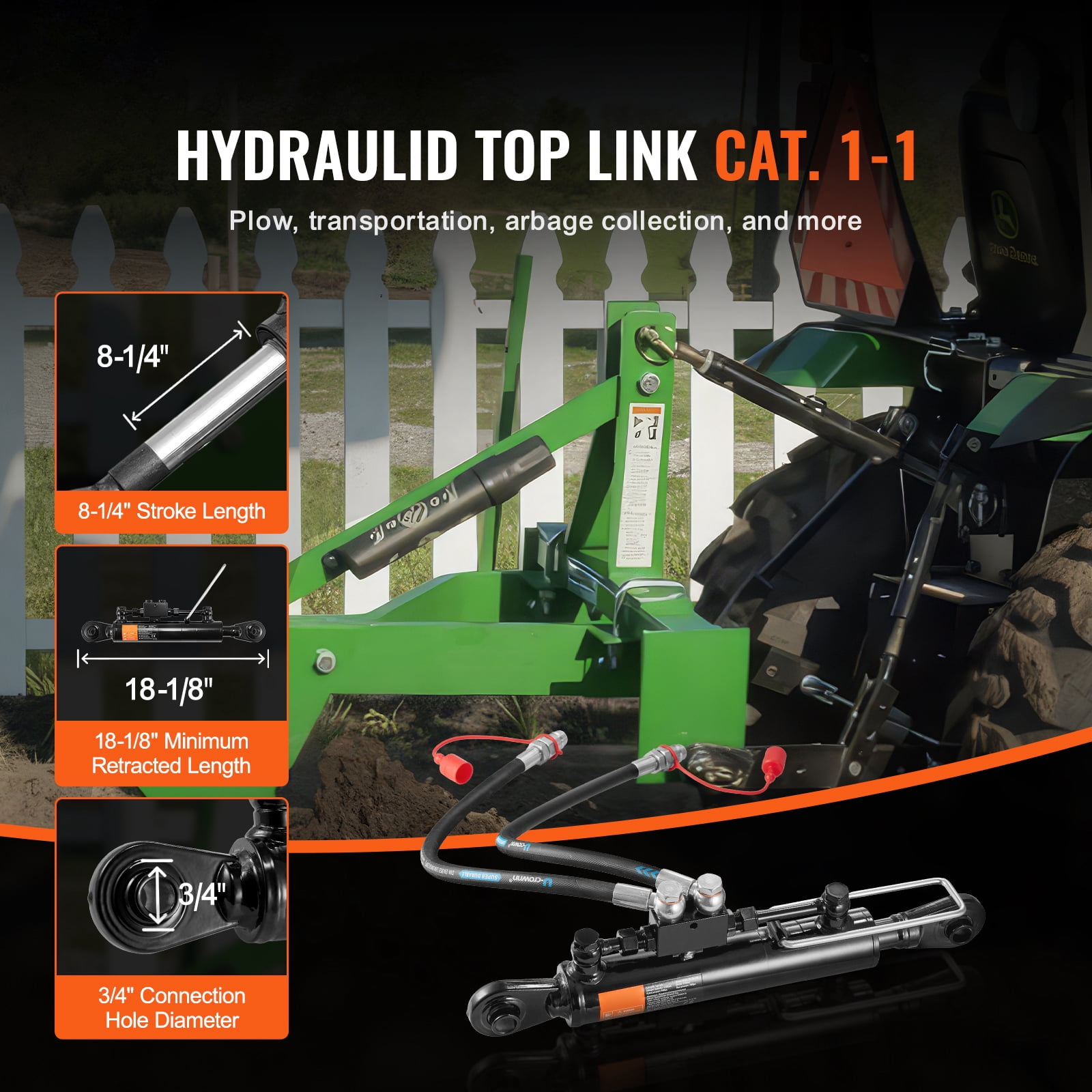

• KFFKFF hydraulic top link is designed for Cat. 1-1 tractors, providing seamless adaptation.

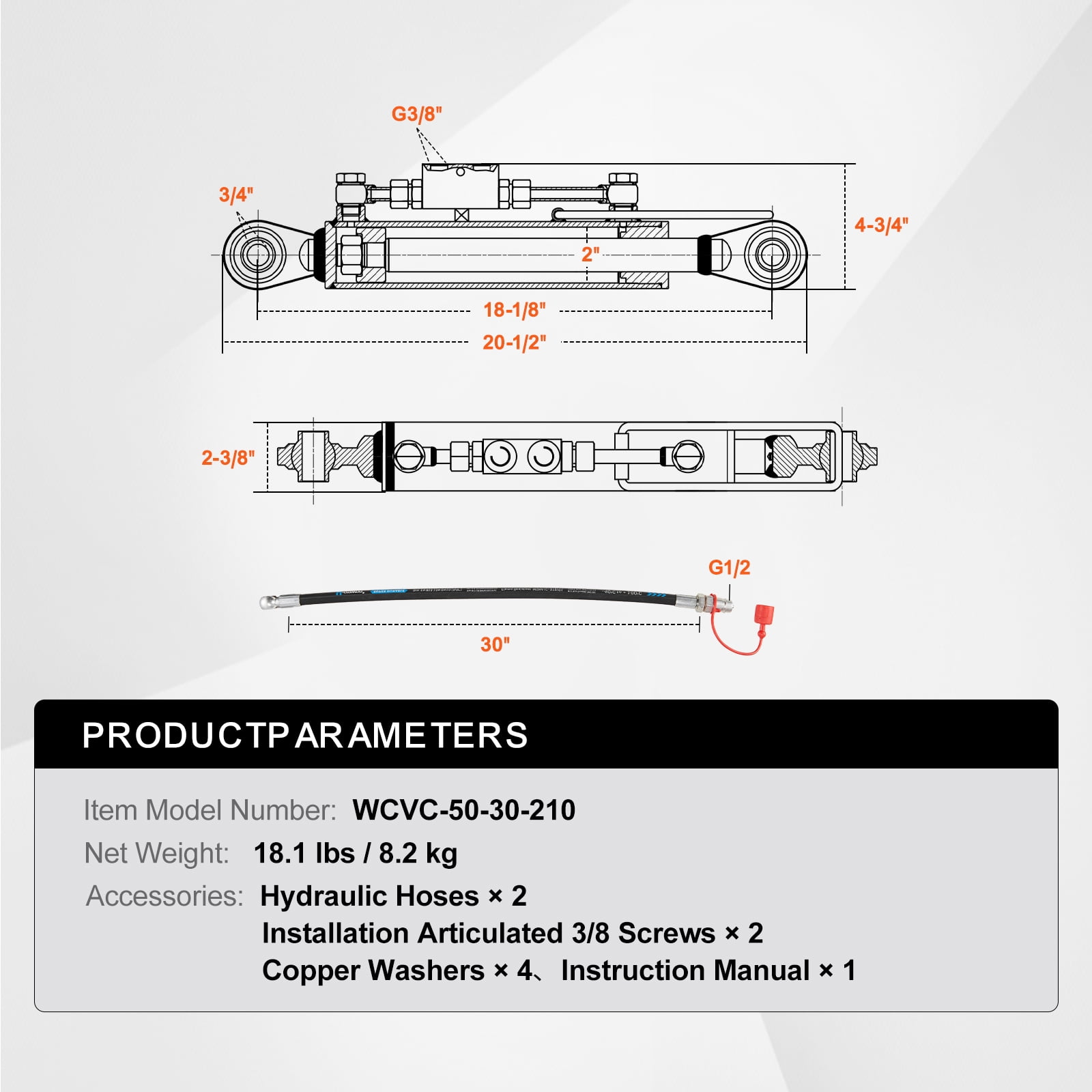

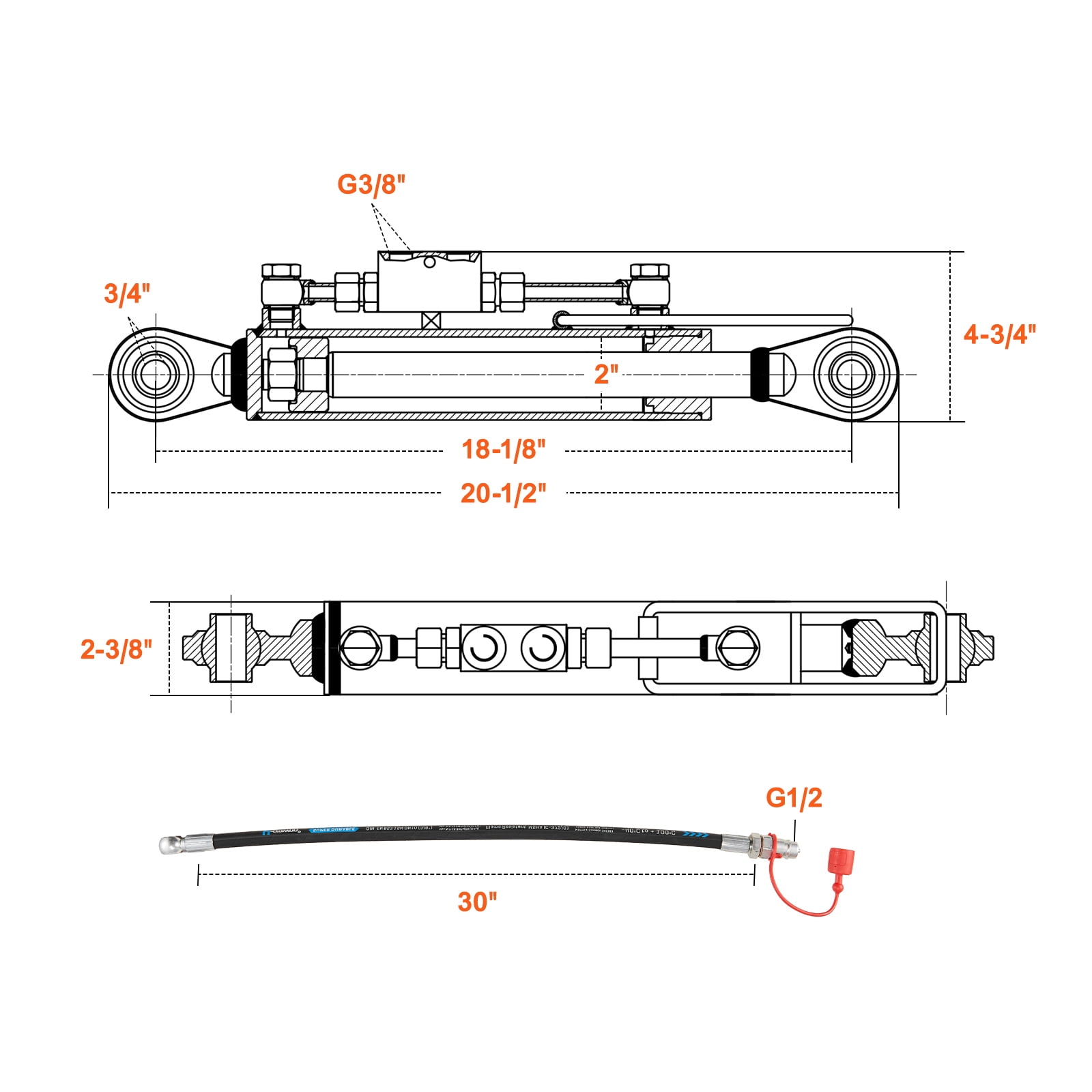

• The rod inlet/outlet diameter is 3/8 in, with a minimum retracted length of 8-1/8 in (460 mm).
• With a stroke length of 8-1/4 in (210 mm) and a hydraulic hose length of 30.1 in (765 mm), it offers versatility in various tasks.

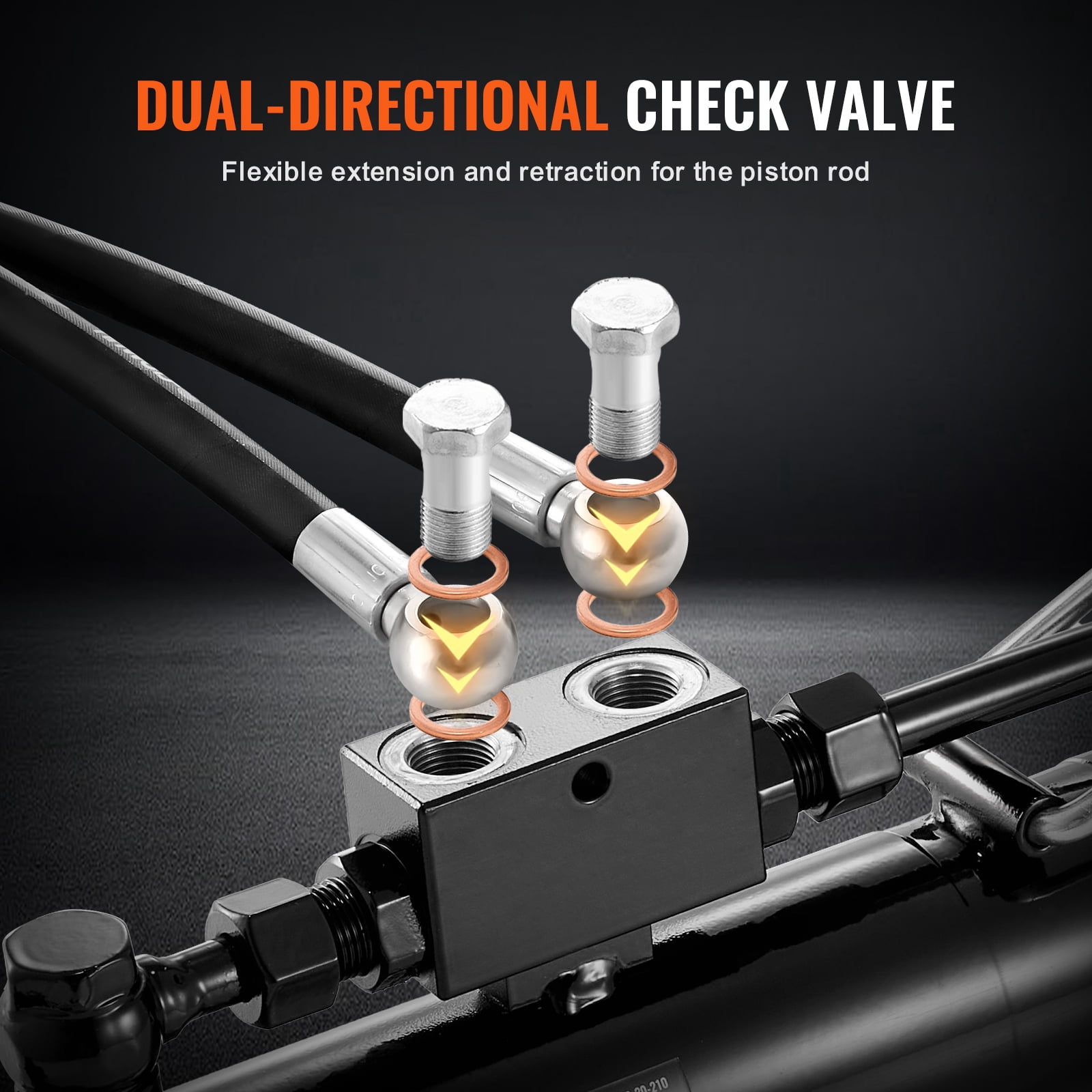

• Featuring a high-sealing bidirectional check valve structure, the hydraulic cylinder ensures minimal oil leakage and precise control.
• Even when the pump stops working, the piston rod remains stable under force, ensuring reliable performance.
• Capable of delivering 3.5 tons of pushing force and 2.3 tons of pulling force, it provides enhanced hydraulic power.
• With a max working pressure range of 20/18 MPa (2900/2610 psi), it easily handles heavy-duty tasks.

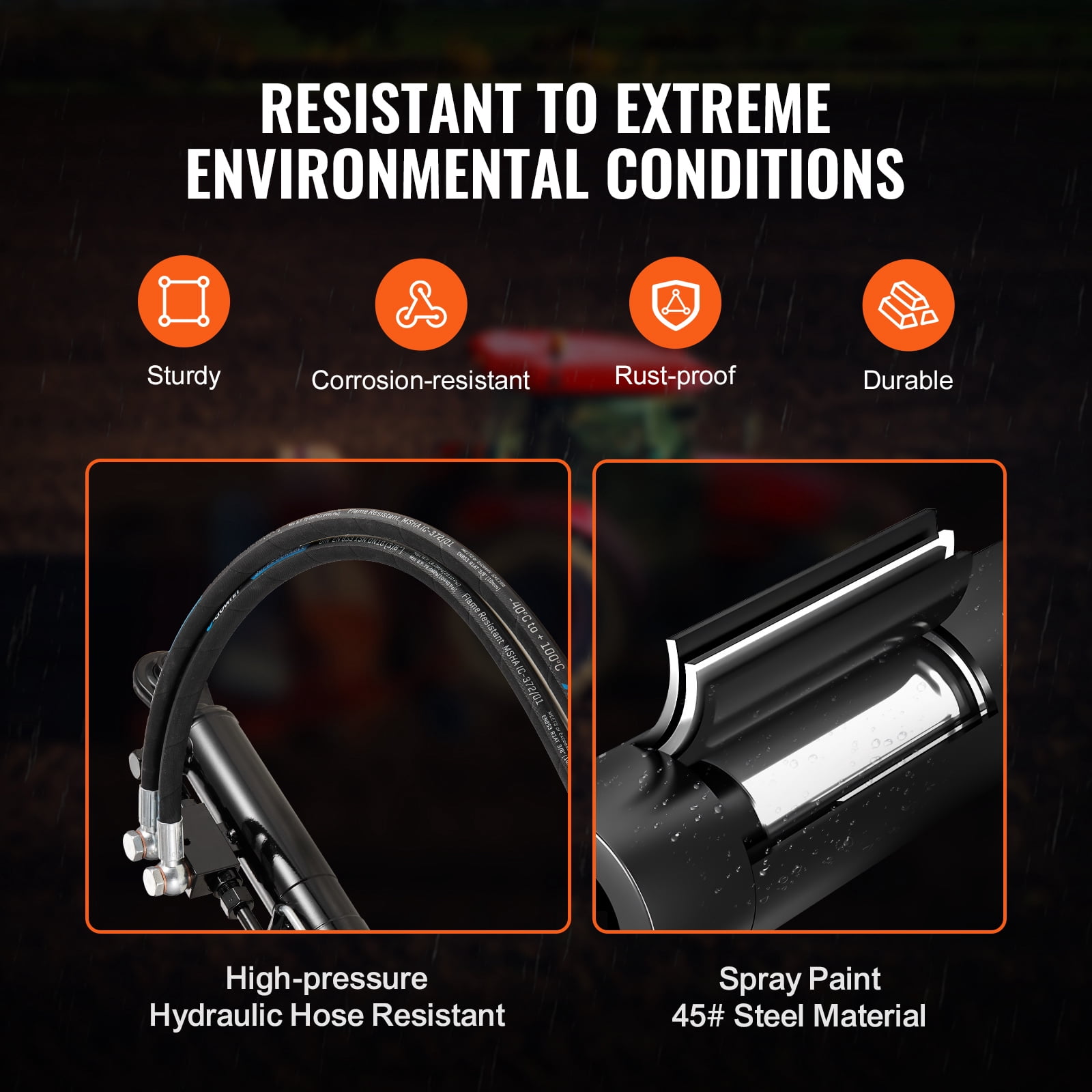

• Constructed with thick 45# steel material and a durable paint coating, it offers excellent rust, wear, and corrosion resistance.
• Designed to withstand harsh conditions such as mud, rain, and high temperatures, it is long-lasting and reliable.

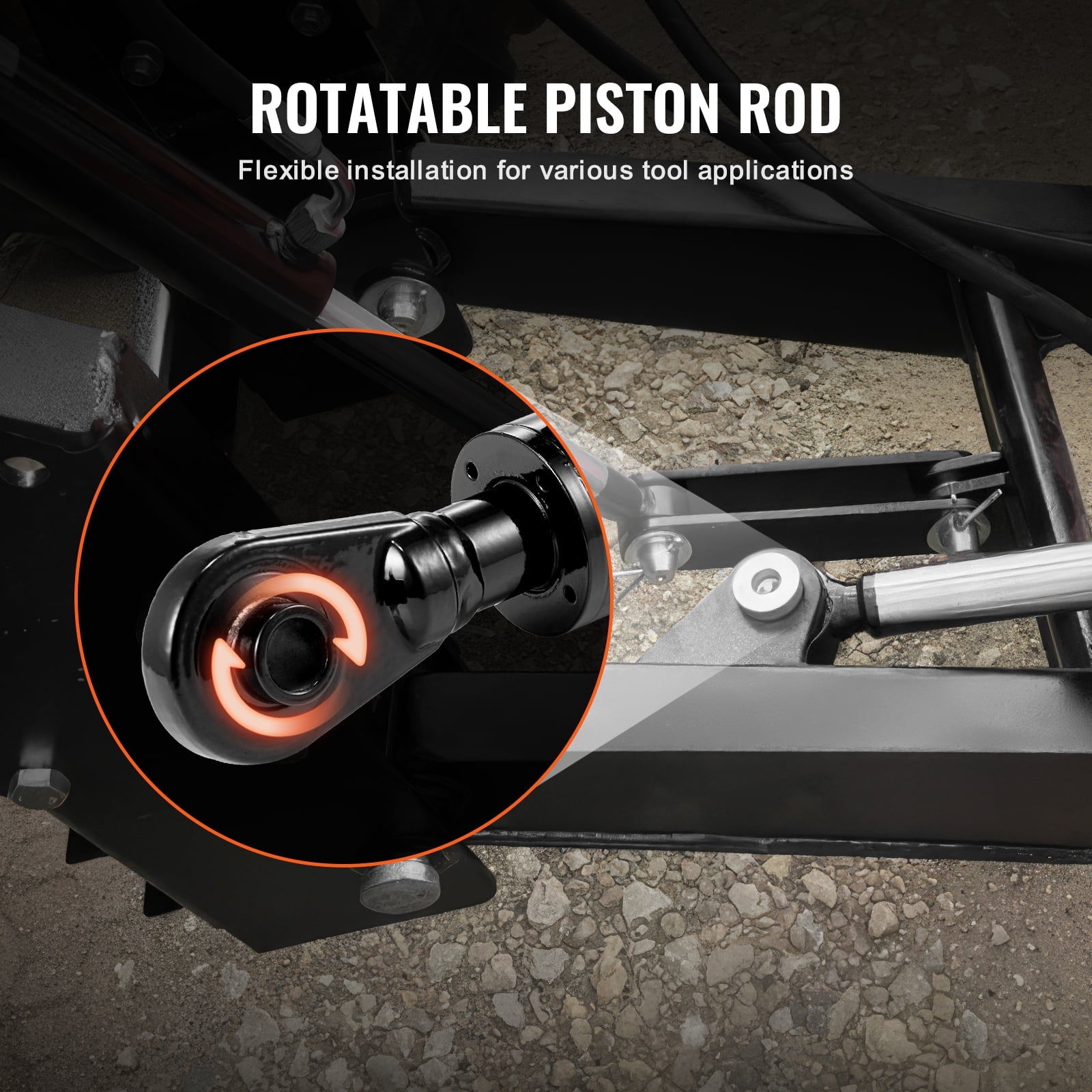

• The rotatable piston rod and high-pressure-resistant hydraulic hoses allow for easy installation and hassle-free assembly.
