Magnetic Reed Switch Normally Closed NC,Magnetic Reed Switch 12v,Magnetic Switch Contacts Door Sensor for Home Alarm Security System 2 Pack
Product details
| Management number | 247492230 | Release Date | 2026/08/16 | List Price | US$4.92 | Model Number | 247492230 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
2 Pack Magnetic Reed Switch Normally Closed NC,Magnetic Reed Switch 12v,Magnetic Switch Contacts Door Sensor for Home Alarm Security System Magnetic Reed Switch,Normally Closed Magnetic Switch,Micro Magnetic Door Sensor for Access Control Replace Alarm System 1. Switch Type: NC.2. NC means Normally Closed:when the magnet together, the circuit is not conductive ( light off ),when the magnet separate, the circuit is conductive ( light on).3. The reed switch is an electrical switch operated by an applied magnetic field.4. Designed for use with alarm systems. Great for use in family and factory window, door. etc.5. Screw Mounted for easily install.INSTALLATION INSTRUCTIONS 1.The window and door contact sensor magnet should be installed at the closed position of the window/door.2.The magnet part is installed on the movable door and window. The switch part is installed on the fixed door and window frame. The switch part and the magnet part should be aligned as much as possible.3.The magnetic switches should be away from the strong magnetic field interference source such as a transformer. Otherwise,the working mode of the door magnet will be changed and wrong actions may occur.4.Magnetic contact sensors can be added to an existing wired Alarm Systems.It can only provide a switch signal to the device, which cannot directly load the power, nor directly connect the lamp!5.Reed switch normally open/closed are very suitable for protecting doors, windows, courtyard doors and any opening devices, such as drawers or cabinets.
- Switch Type: Normally Closed NC,when the magnet together, the circuit is not conductive ( light off ),when the magnet separate, the circuit is conductive ( light on).
- Reed Switch Size: 64X13X13mm(L*W*H).Magnetic reed switch 12V is made of ABS, which is sensitive and has good heat resistance and corrosion resistance. Simple installation with screws.
- Contact Capacity: 0.5A(Maximum Switch Current); Voltage: DC 12V~100V; Rated Power: 10W; Transmitting Distance: 10-20mm
- Applications: Designed for use with alarm systems. Reed switch can be used in home security and burglar alarm system. It is an ideal choice for wooden doors and windows in homes and factories.Widely used in security window, door, cabinet contact.

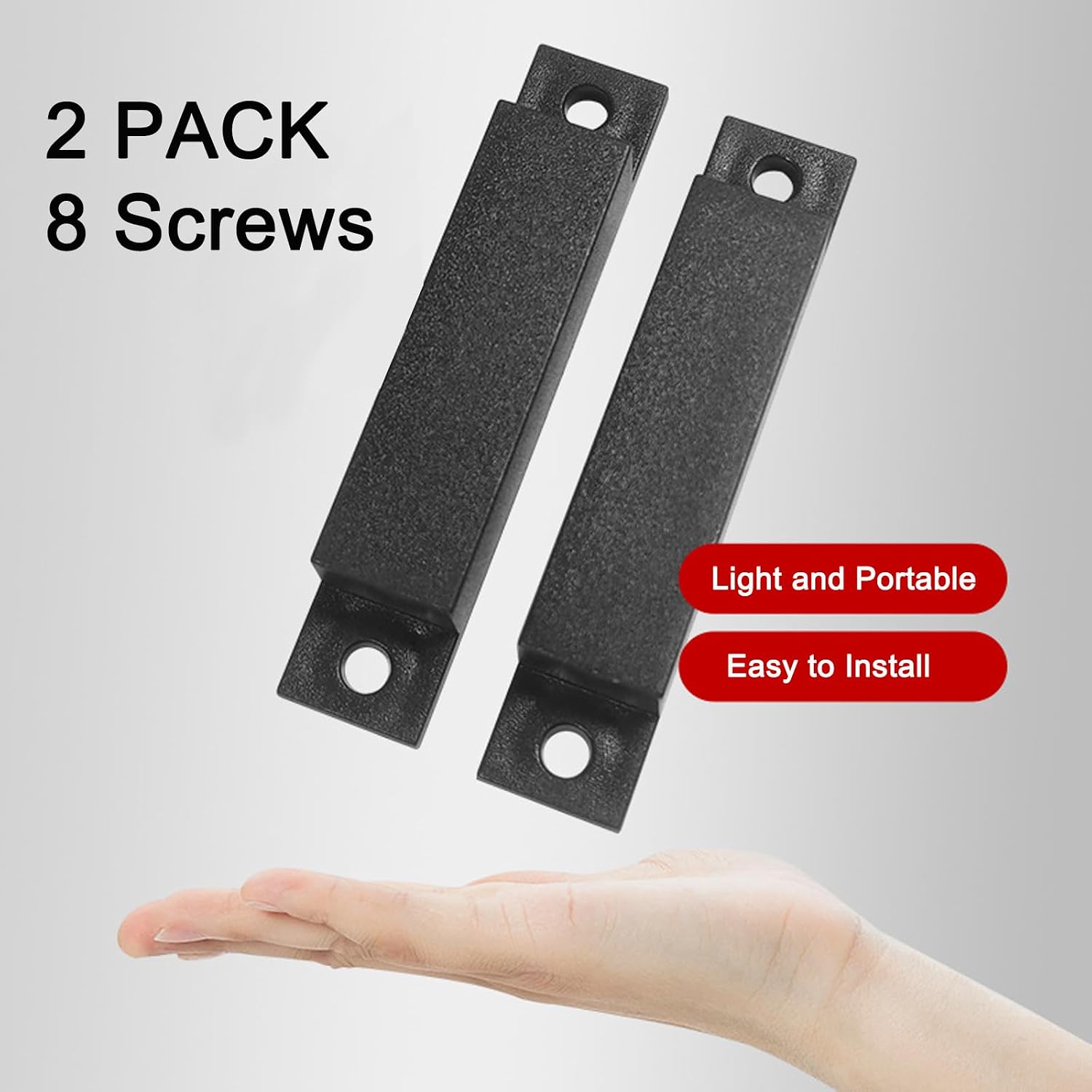

- Package Included：2 sets Magnetic Reed Switch+8pcs Screws
| ASIN | B0DQVMG7MQ |
|---|---|
| Wattage | 10 watts |
| Terminal | Screw |
| Brand Name | FINEZAHS |
| Unit Count | 1 Count |
| Part Number | 631313 |
| Switch Type | Magnetic Reed Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Control Type | ON-OFF |
| Manufacturer | FINEZAHS |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | Surface Mount |
| Connector Type | Plug In |
| Control Method | Sensor |
| Current Rating | 0.5 A |
| Operation Mode | ON-OFF |
| Controller Type | Nc/No |
| Item Dimensions | 2.36 x 0.39 x 0.39 inches |
| Number of Items | 1 |
| Contact Material | Alloy Steel |
| Operating Voltage | 100 volts |
| Specification Met | RoHS |
| Included Components | switch |
| Number of Positions | 1 |
| Upper Temperature Rating | 80 °C |
| International Protection Rating | IP68 |
