NVX VADM1 500W RMS Class D Monoblock Car/Marine/Powersports Amplifier with Bass Remote

The VAD Series of amplifiers are available in a number of different sizes and meant for a number of different applications. The new NVX VADM1 line is incredibly compact and can be placed nearly anywhere in your vehicle. The larger VAD amps are more powerful and they have RMS power rating all the way up to 2700 Watts RMS for the most powerful of subwoofers. Introducing the VAD M-line of amplifiers. This new line of revolutionarily compact and surprisingly powerful amps will blow you away. This specific VADM1 amplifier has a total RMS power output of 500W all in a chassis not much larger than a dollar bill.

• Product Highlights
  • 500 Watt True RMS Output!
  • Marine Certified Monoblock Micro Class D Amplifier
  • 180W x 1-Chan. @ 4 ohms
  • 320W x 1-Chan. @ 2 ohms
  • 500W x 1-Chan. @ 1 ohms
  • 3-Way System Protection

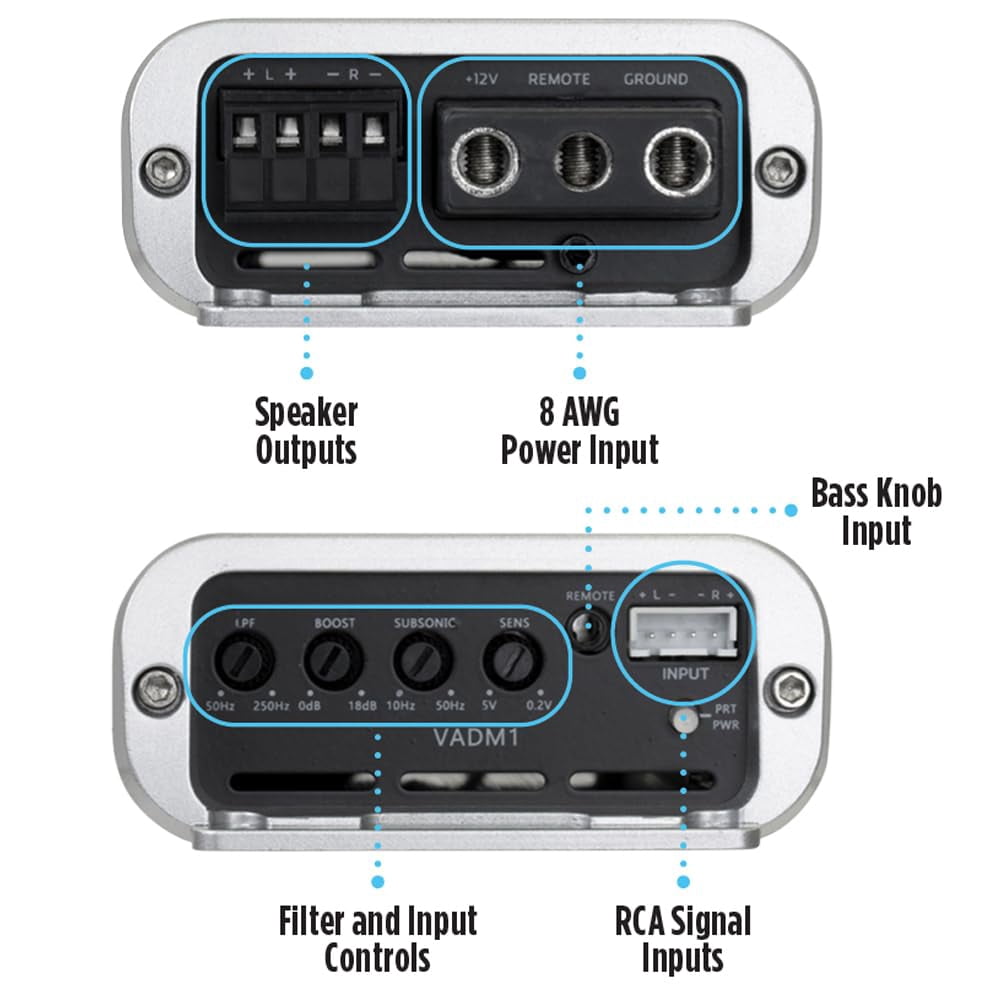

  • 8 Gauge Power and Ground Inputs

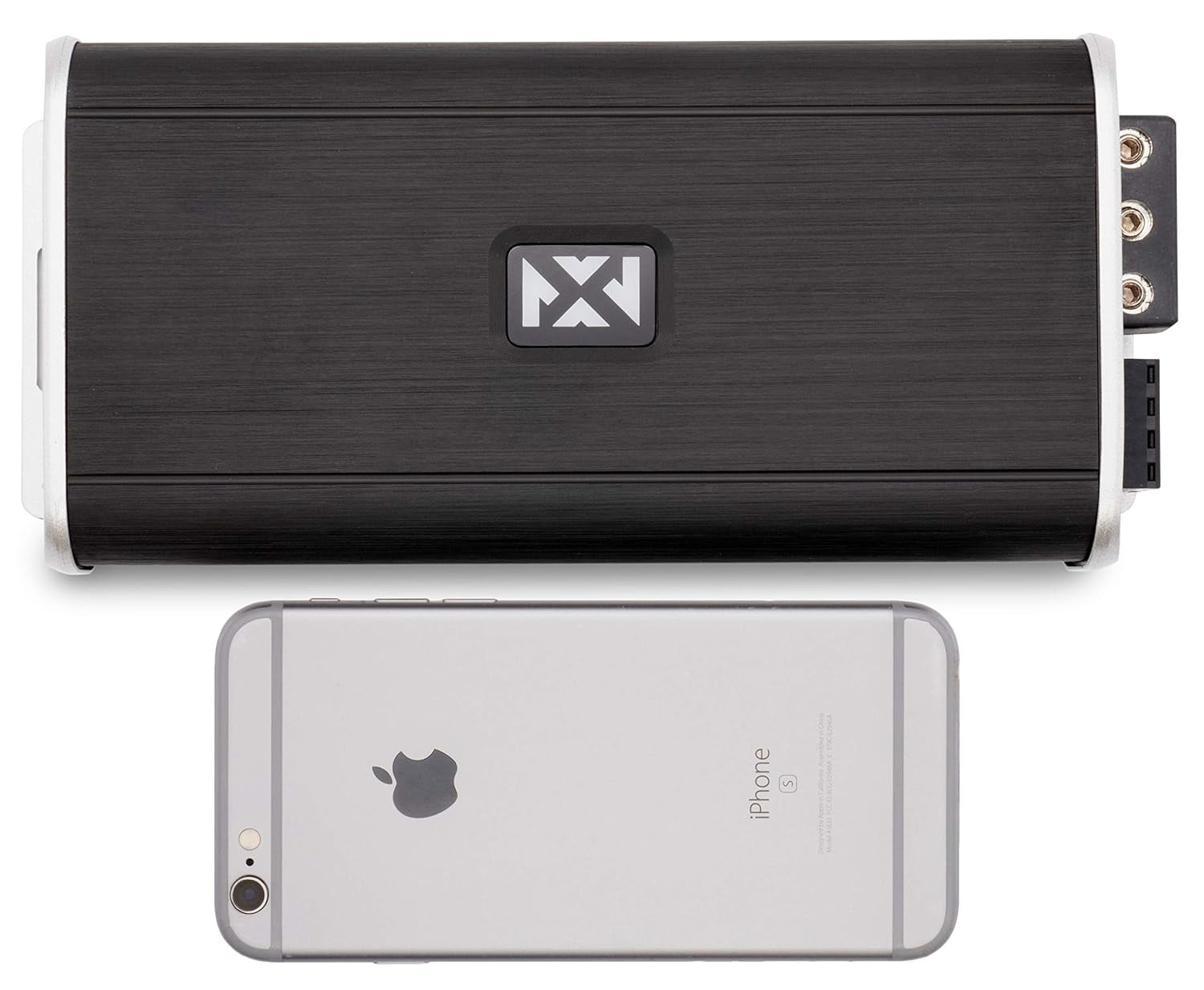

  • Extremely Small Footprint
• Product Details:
  • Marine Certified 1-Channel Class D Car Amplifier
  • Peak Power Rating: 1000 Watts
  • RMS Power Rating:
  • 4 ohms: 180 watts x 1 channel
  • 2 ohms: 320 watts x 1 channel
  • 1 ohm: 500 watts x 1 channel
  • Cutting edge Micro Class D technology allows amplifier to be extremely compact
  • LED power (blue) and protect (red) indicators
  • Conformal Coated Marine grade circuit board
  • Balanced Differential Inputs, to eliminate noise picked up by signal cables
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 0.2V-5V
  • Variable low-pass filter (50-250 Hz)
  • Bass Boost: 0 - +18dB boost @ 45Hz
  • Frequency Range : 20 - 20KHz
  • Total Harmonic Distortion: <0.3%
  • CEA-2006 compliant amplifier
  • Dimensions: 6.8"L x 3.3"W x 1.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
• Key Features
  • Amplifier Key Features - Bass Boost, Compact Design, Speaker Level Inputs, Weather-Resistant
• Power Specifications - Subwoofer Channel
  • RMS Power @ 4 ohms - 180 watts x 1 channel
  • RMS Power @ 2 ohms - 320 watts x 1 channel
  • RMS Power @ 1 ohm - 500 watts x 1 channel
  • RMS Power @ .5 ohm - 500 watts x 1 channel
• Power Specifications - Subwoofer Channel
  • Peak Power @ 4 ohm - 360 watts x 1 channel
  • Peak Power @ 2 ohms - 640 watts x 1 channel
  • Peak Power @ 1 ohm - 1000 watts x 1 channel
  • Peak Power @ .5 ohm - 1000 watts x 1 channel
• Amplifier Specifications
  • Series - V Series
  • Amplifier Class - D
  • Number of Channels - 1 - Mono
  • Total Peak Power Output - 1000 watts
  • Total RMS Power Output - 500 watts
  • Maximum Input Gauge Size - 8 AWG
  • Minimum Impedance Unbridged - 1 ohms
  • Minimum Impedance Bridged - Not Bridgeable
  • THD at Rated RMS Power - 0.3%
  • Speaker Level Inputs - Yes
  • Preamp Outputs - No
  • Built-in Crossover - Low-Pass (LP), Subsonic
  • Low-Pass Crossover Frequency - 50 - 250 Hz
  • Subsonic Filter - 10 - 20 Hz
  • Signal-to-Noise Ratio - 105 dB
  • Bass Boost - 0 - 18 dB

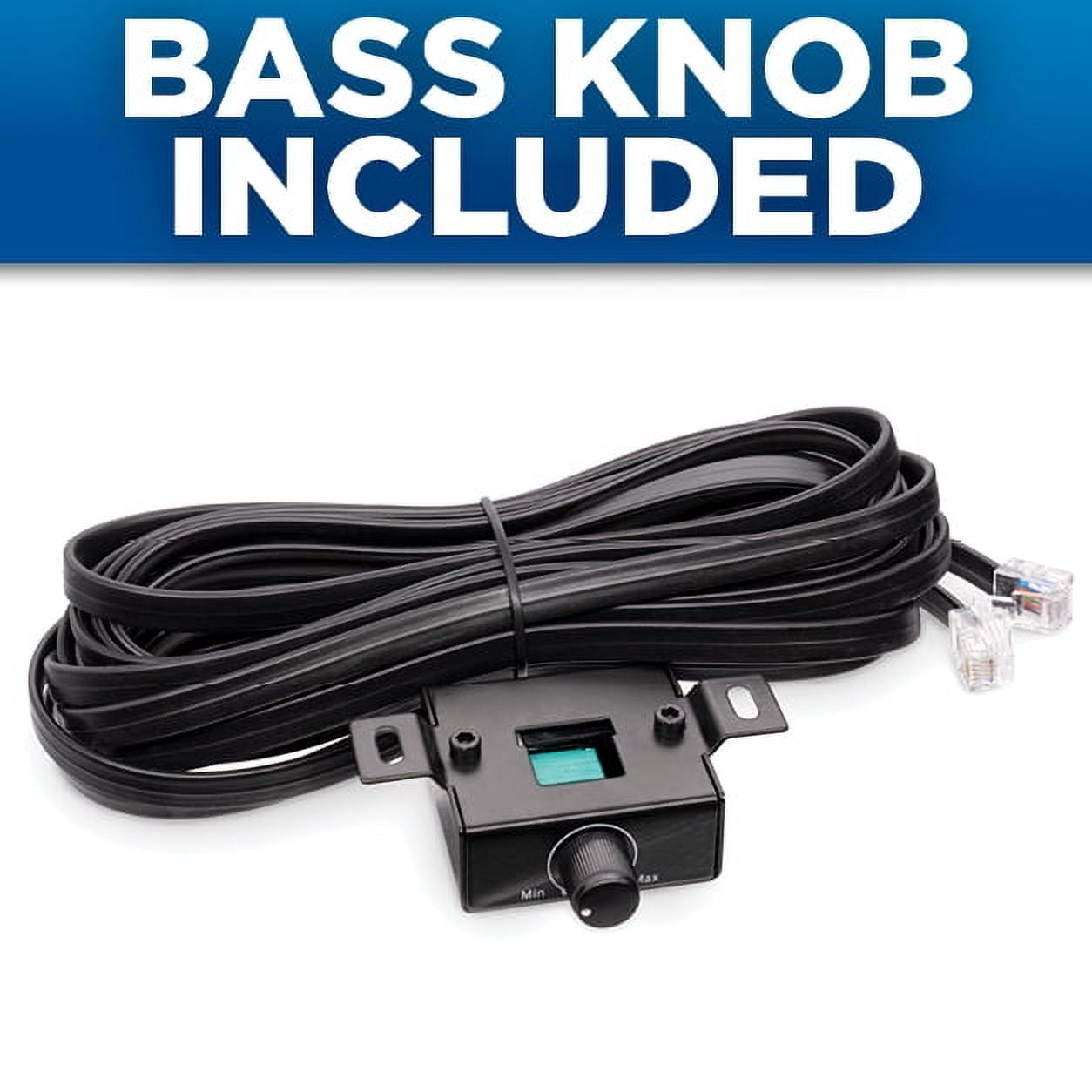

  • Remote bass/level controller - Yes
  • Strappable - No
  • Sonic Certified Amplifier - Yes
  • Amp Bluetooth Connectivity - No
  • Hi-Res Certified - No
• What is in the box?
  • Paperwork - User manual

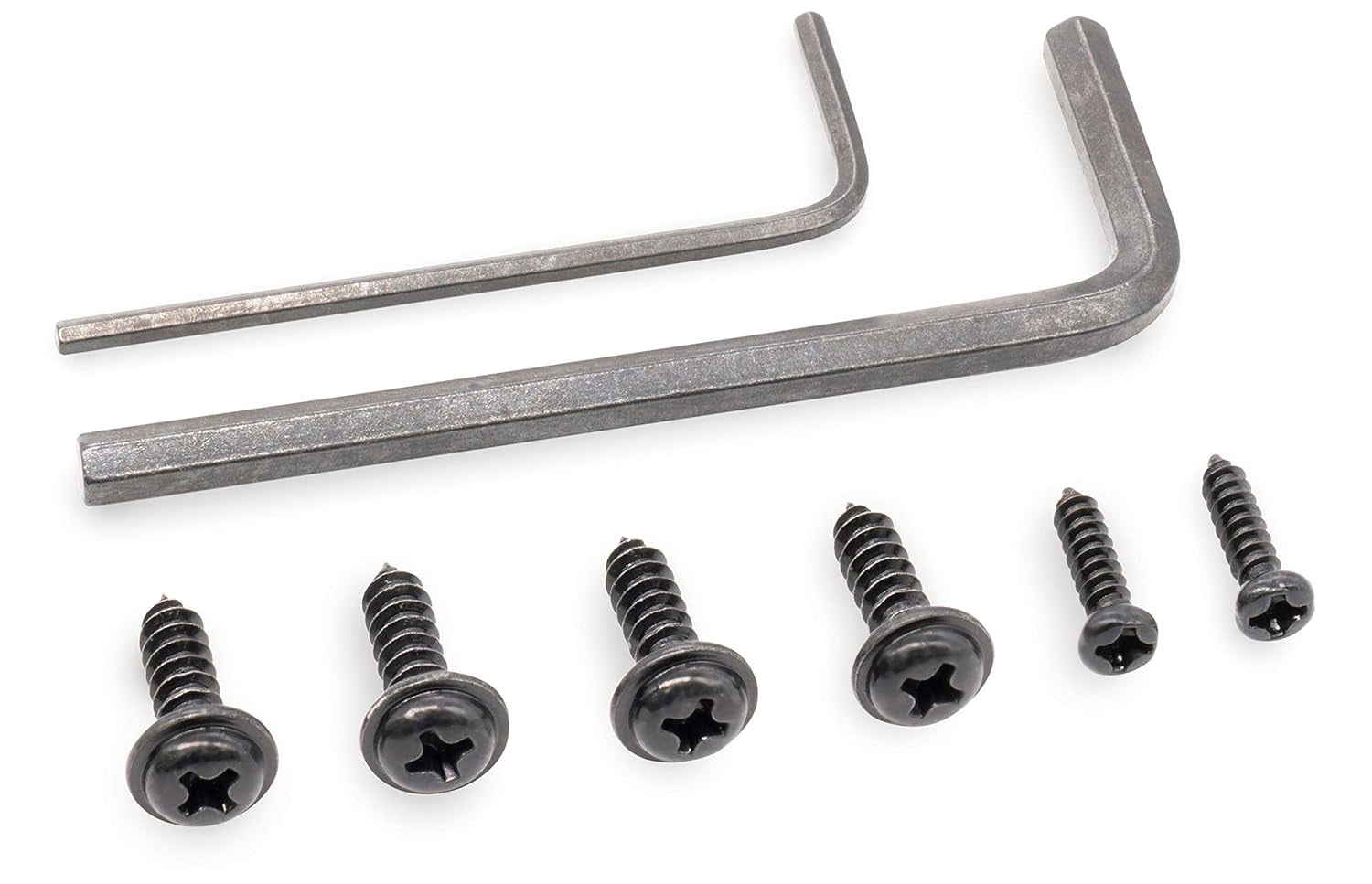

  • WITB: Amplifiers - Amplifier, Wired gain knob (wire attached), Mounting screws (4), Allen wrenches (2)
• Warranty and Return Policy
  • Parts Warranty Duration - 1 year
  • Labor Warranty Duration - 1 year
  • Warranty Provider - Manufacturer
