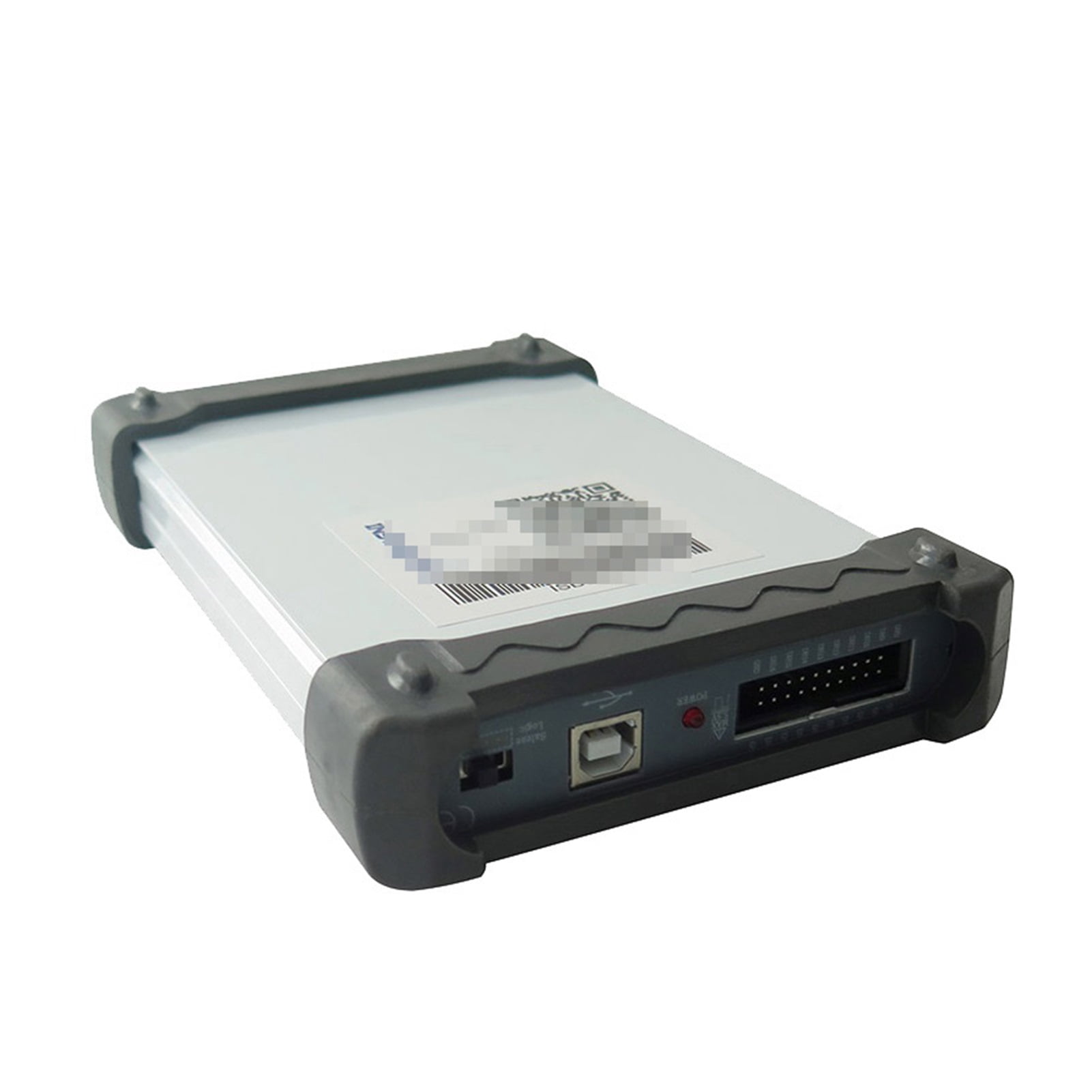

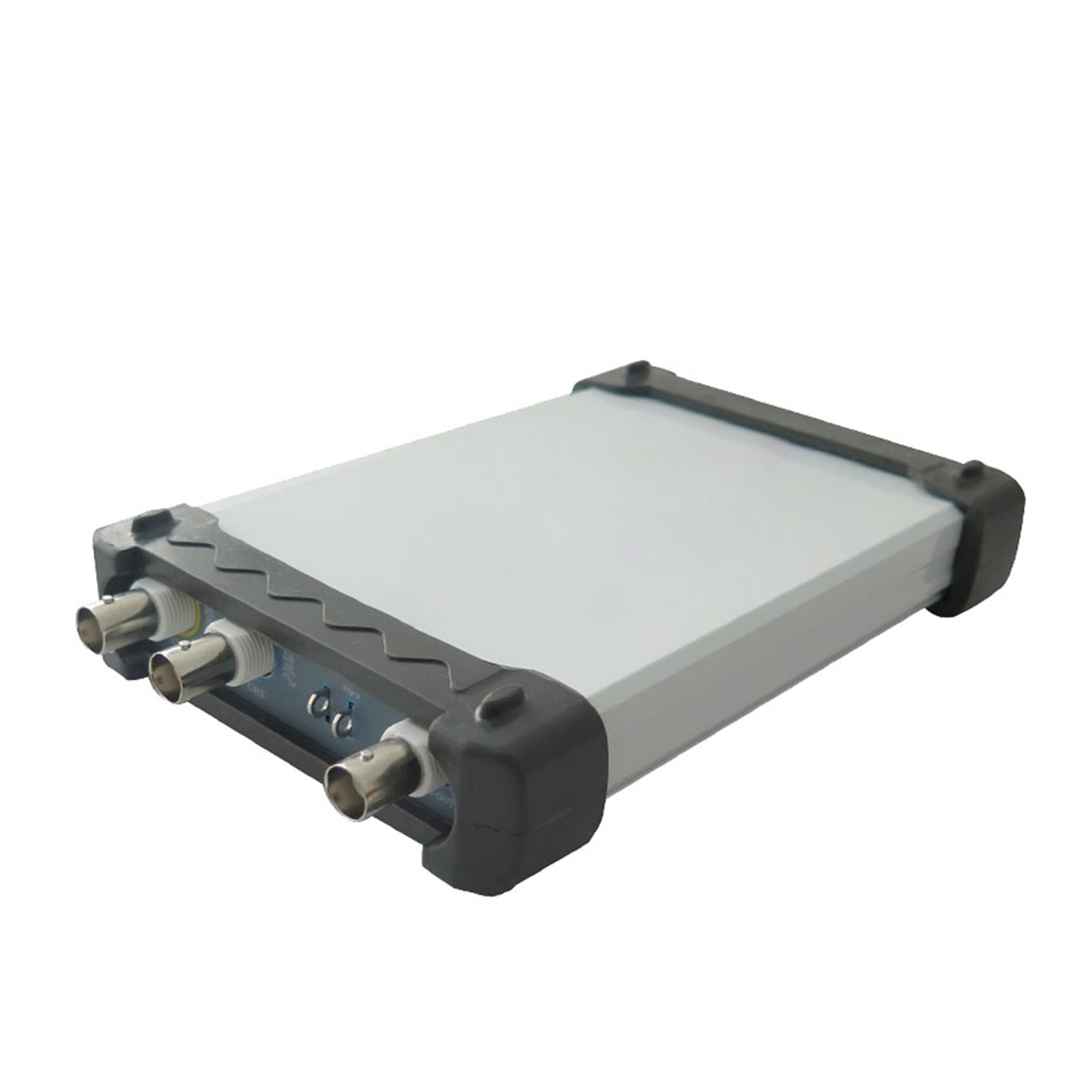

PC USB Oscilloscope Signal And Logic Analyzer 2CH 20 MHz Bandwidth 48MSa / S 8 Bit Analyzer

<p>This is a logic analyzer product with high cost performance. </p><p>Channels of digital signal could be sampled at the same time, and then they could be converted to digital waveform and displayed on the PC screen.</p><p>The signal could be analyzed with many standard protocols, to get more straightforward communication data.</p><p>It helps a lot in testing and analyzing digital system, developing and debugging several communication programs, or monitoring and recording some digital signals for a long time.</p><p>Excellent industrial design, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability</p>

• Attention!!!This oscilloscope can not connect to house voltage directly ,need isolation protection.
• Virtual PC USB oscilloscope
• Features and specifications:
• dual-channel digital oscilloscope, with "low-cost, high-performance" as the design goals.
• Well-designed bandwidth of 20/48M sampling rate, 2 channels, alternating support X-T and XY alternating pattern of two-channel virtual oscilloscope, spectrum analyzer, and data recorder.
• 205X support logic analyzer.
• Support 5 kinds of waveform output, Sine wave can output up to 20M.
• Specifications:
• Channels: 2
• Impedance: 1M 25pF
• Coupling: AC/DC
• Vertical resolution: 8-Bit
• Gain range: -6 to 6 V (probe X1), -60 to 60 V (probe X10)
• Vertical accuracy: ±3%
• Time base range: 1 ns 20 s
• Input protection: Diode, 50Vpk
• Autoset: Yes (10 Hz to 20 MHz)
• Trigger mode: Auto, normal, and signal
• Trigger type: No, rising edge, falling edge, rising edge or falling edge
• Trigger level: Yes
• Trigger source: CH1, CH2
• Buffer size: 1 MB/CH
• Bandwidth:20 MHz
• Max sample:48 MS/s
• Vertical mode: CH1, CH2, ADD, SUB, MUL
• mode: X, Y-T, X-Y
• Measurements: Yes
• Wave save: Osc (Private), Excel and Bmp
• Spectrum analyzers:
• Channels: 2
• Bandwidth: 20 MHz
• Algorithm: FFT (18 windows), correlation
• FFT points: 8 - 1048576/CHN
• Data Recorder:
• Channel: 2
• Impedance: 1M 25pF
• Coupling: AC/DC
• Vertical resolution: 8-Bit
• Gain range: -6 to 6 V (probe X1), -60 to 60 V (probe X10)
• Sample 1 channel: 1K - 24M Hz
• 2 channel: 1K - 16M Hz
• Save file: The maximum 4G, recording time associated with the sampling rate

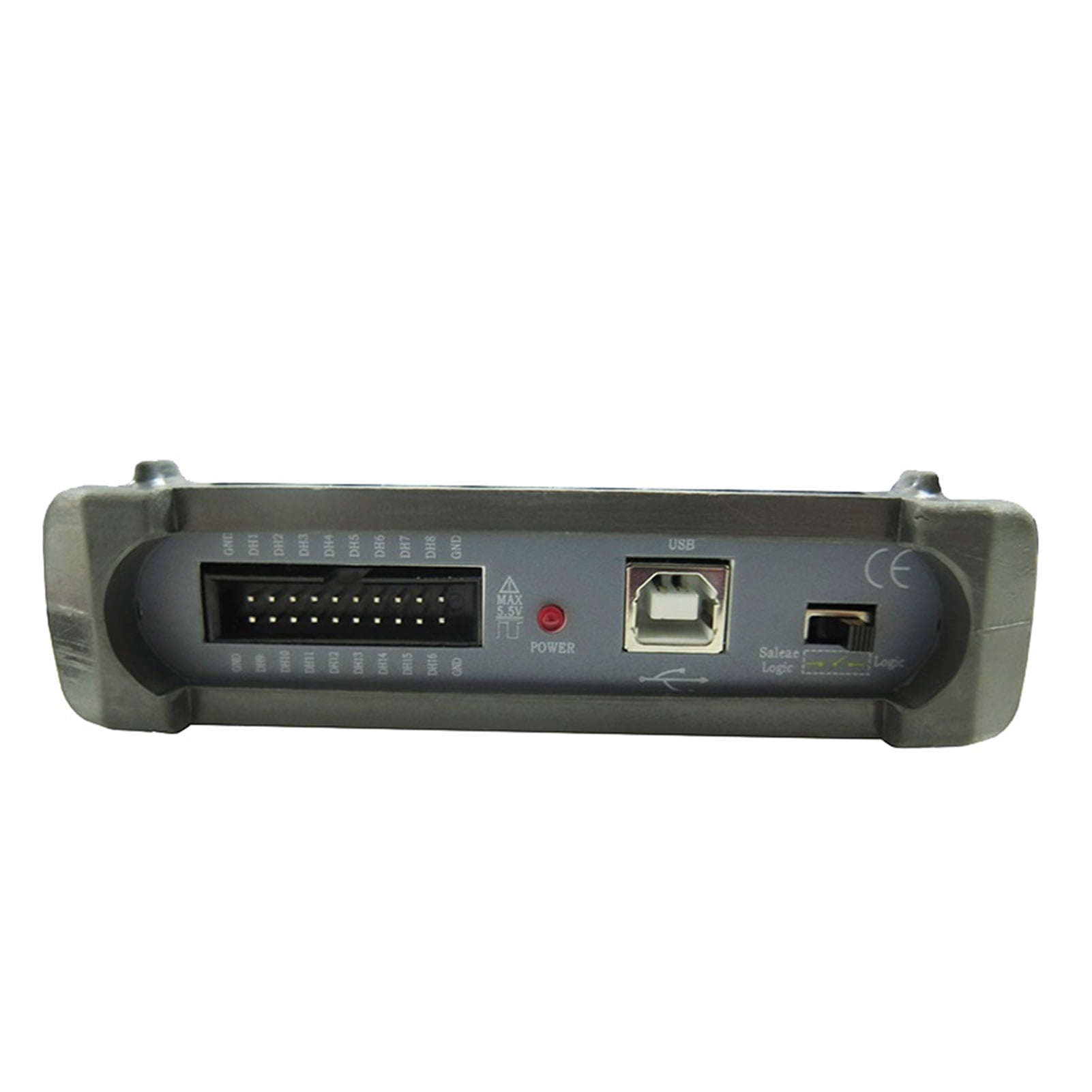

• Logic analyzer:
• Channel: 16
• Sample: 250 K 24 MHz (8 channel), 250 K 16 MHz (16 channel)
• Sample points: 1 M 2 GB
• Sample points:
• 1 M 2 GB
• Logic Logic Analyzer:
• Channel: 8
• Sample: 25 K 24 MHz
• Protocol analyzer: Atmel SWI, BiSS C, SPI, I2C, CAN, UART, I2S/PCM, DMX-512, JTAG, LIN, Manchester, 1-WIRE, UNI/O, Simple Parallel, MDIO, USB1.1, PS/2 Keyboard/Mouse
• Sample points: 1 MB - 10 TB
• DDS:
• Wave: Sine, Square (Duty circle variable), Triangle, Up Sawtooth, Down Sawtooth
• Amplitude: 9Vp-p(no load)
• Impedance: 200±10%
• Offset: ±2.5V
• Frequency range: 1 Hz 20 MHz
