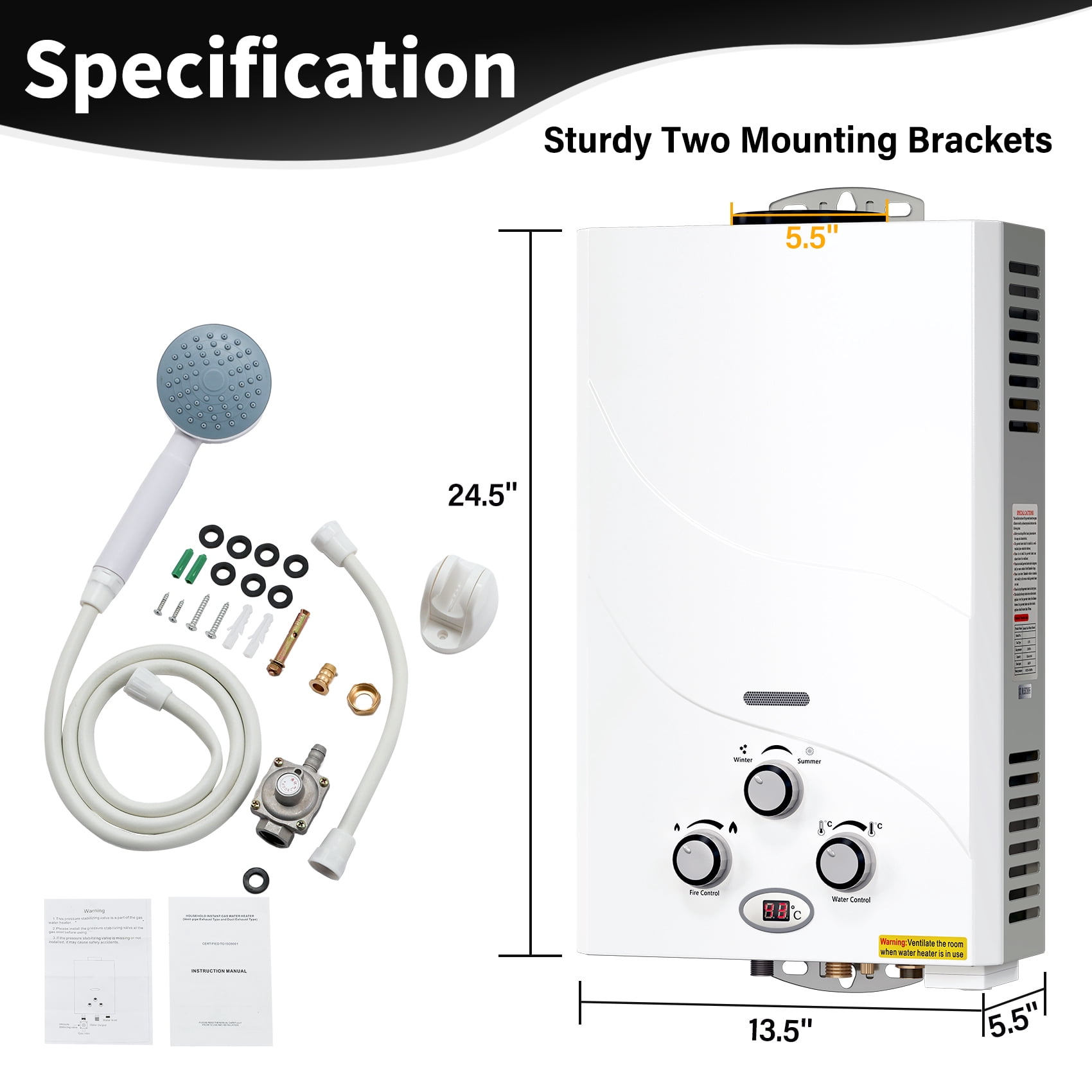

TCFUNDY LPG 36KW Instant Water Heater for Home, 18L Capacity with Automatic Ignition
Product details
| Management number | 230270981 | Release Date | 2026/06/18 | List Price | US$68.00 | Model Number | 230270981 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

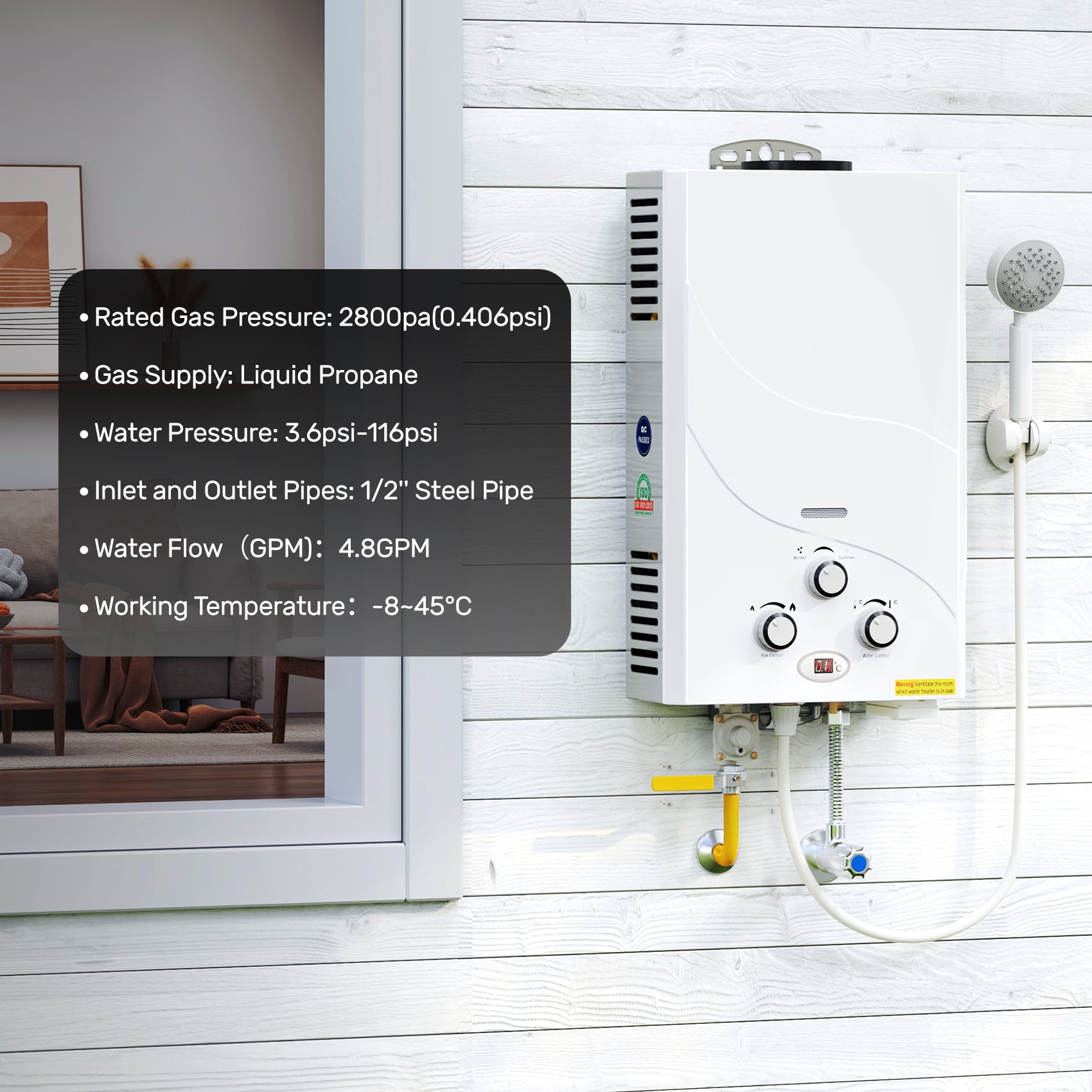

Gas Type: LPG Liquid Petroleum Gas (PROPANE)<br> Capacity: 18L/min (4.8Gal), 25 degrees warm water producing rate<br> Working temperature:-8-45℃<br> Thermal input: 36KW<br> 18L Maximum air consumption: 1.9kg/h<br> Thermal efficiency: ≥80.8%<br> Temperature rise: 25℃<br> Minimum working water pressure: 0.025MPa<br> Gas pressure: 2800Pa/0.40psi (Very important to set appropriate gas pressure, or the water heater will not ignite.)<br> Gas pipe: G 1/2"<br> Water Inlet: G1/2"<br> Water Outlet: G1/2"<br> NPT 1/2" female to G 1/2" male<br> Vent Type:4.3" Flue Duct<br> <br> Panel Color: White<br> Certification: ISO 9001:2000<br> <br> Automatic ignition system, Flame failure protection device<br> Water & gas combination unit ,Fitted with over heating and pressure safeguard<br> Suitable for both summer and winter<br> 20 min. off self-timer<br> Mains power not required<br> Electrical requirement: DC3V, Automatic electric ignition powered by two (2) size 'D' batteries (batteries not included; No electrical hook up; No standing pilot) <br> Net weight: 28 Lbs<br> <br> Attention:<br> Empty the water tank in cold weather to avoid any crack<br> Do not install the water heater and the exhaust pipe near any flammable or explosive items.<br> Please seal the air inlet, water inlet and water outlet with the attached gasket, do not use raw material tape / PTFE tape to seal, otherwise it will cause air leakage and water leakage.<br>

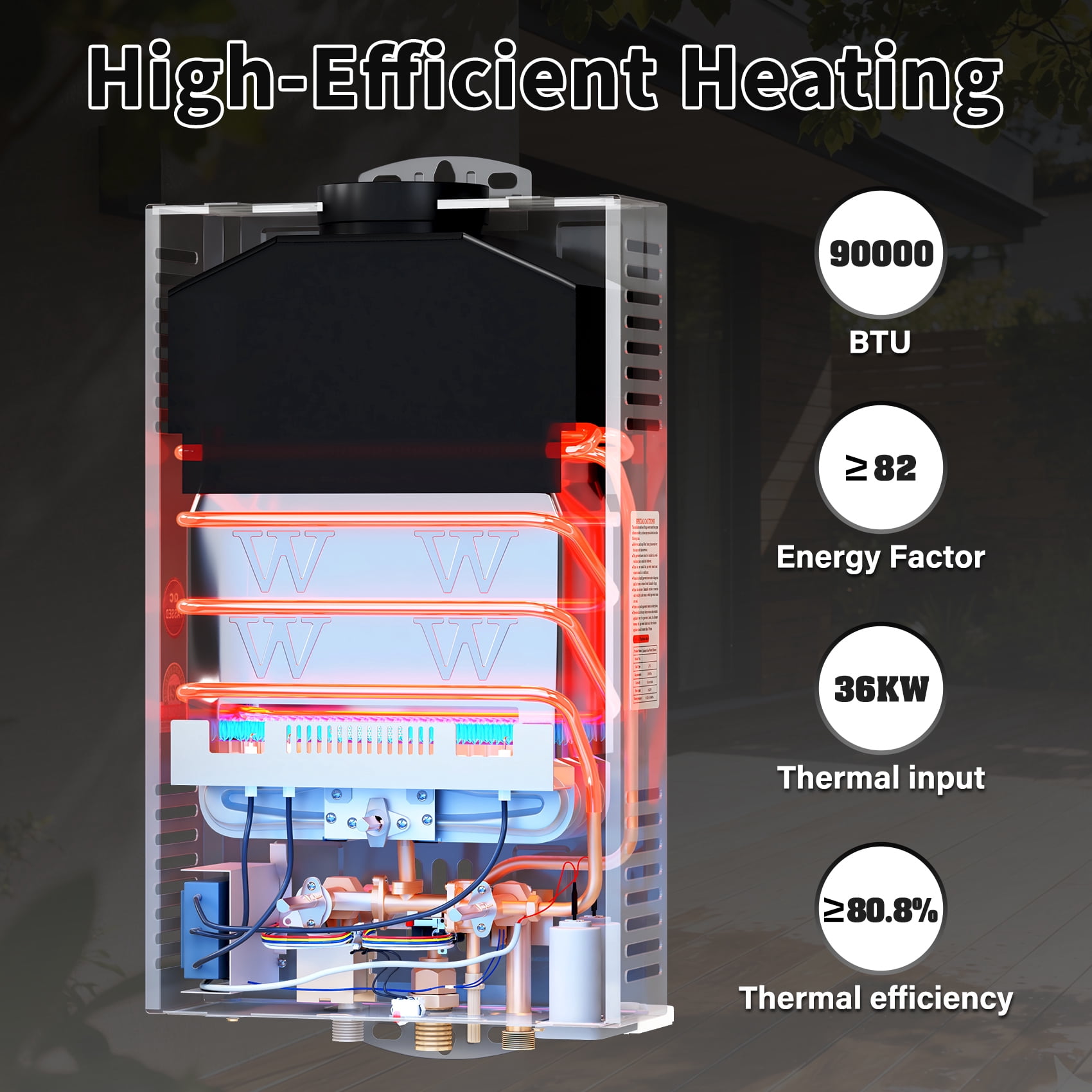

- High efficient energy saving with advanced energy-saving and combustion technology to decrease gas consumption and burning noise
- Low water-pressured startup allows operation in low water pressure areas and high-rise buildings
- Manifold auto protection for safety with ion flame inspection to automatically shut down gas power during unexpected flameout
- Over water pressure protection function to automatically decrease pressure under excessive high water pressure
- Controller design enables proper control of both cold and warm water
| Water heater type | Tankless Water Heaters |
|---|---|
| Fuel type | Propane |
| Brand | TCFUNDY |
| Volume capacity | 18 L |
| Features | Automatic, LED Indicator |
| Rec location | Indoor and Outdoor |
| Has written warranty | No |
| Power type | Gas |
| Btu | 90000 |
| Watts | 90000 W |
| Volts | 3 V |
| Weight | 19 lb |
| Has nrtl listing certification | N |
| Accessories | Shower Head, Complete manual |
| Model | 18LLCD |
